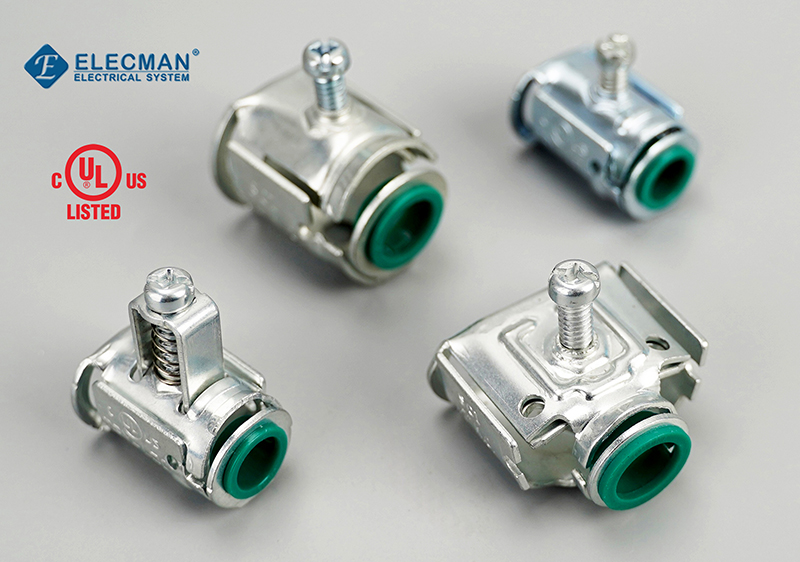

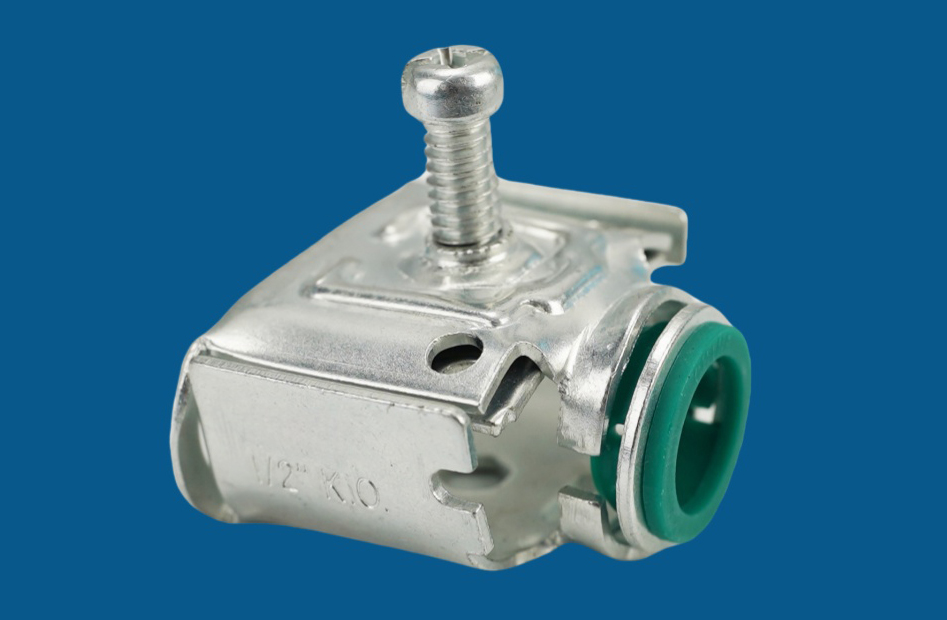

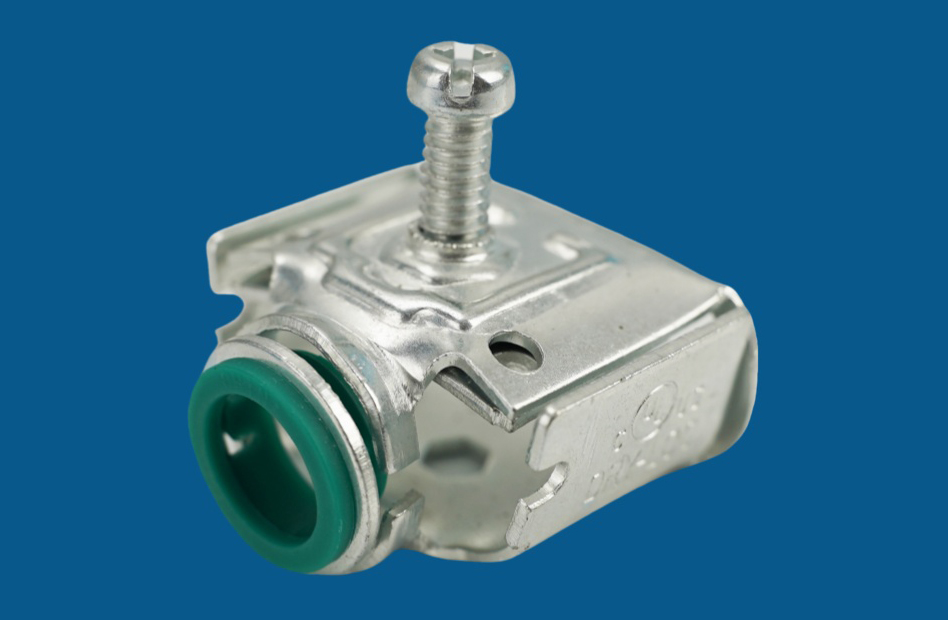

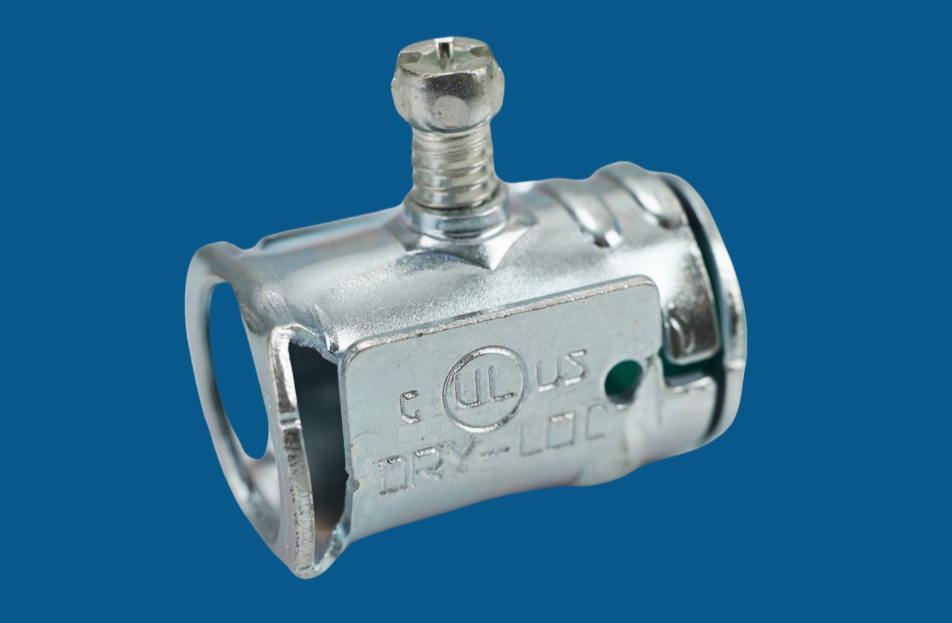

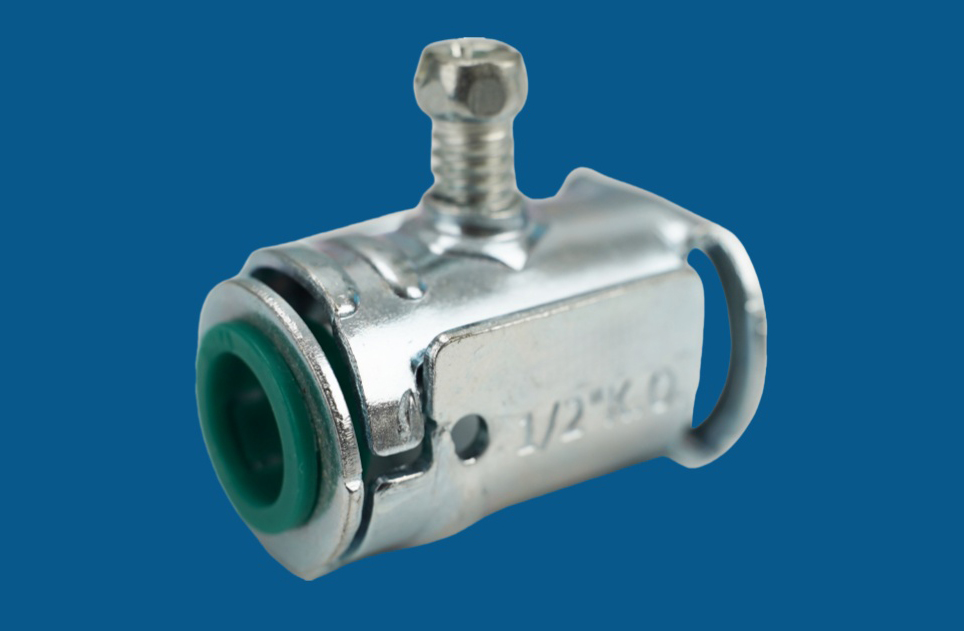

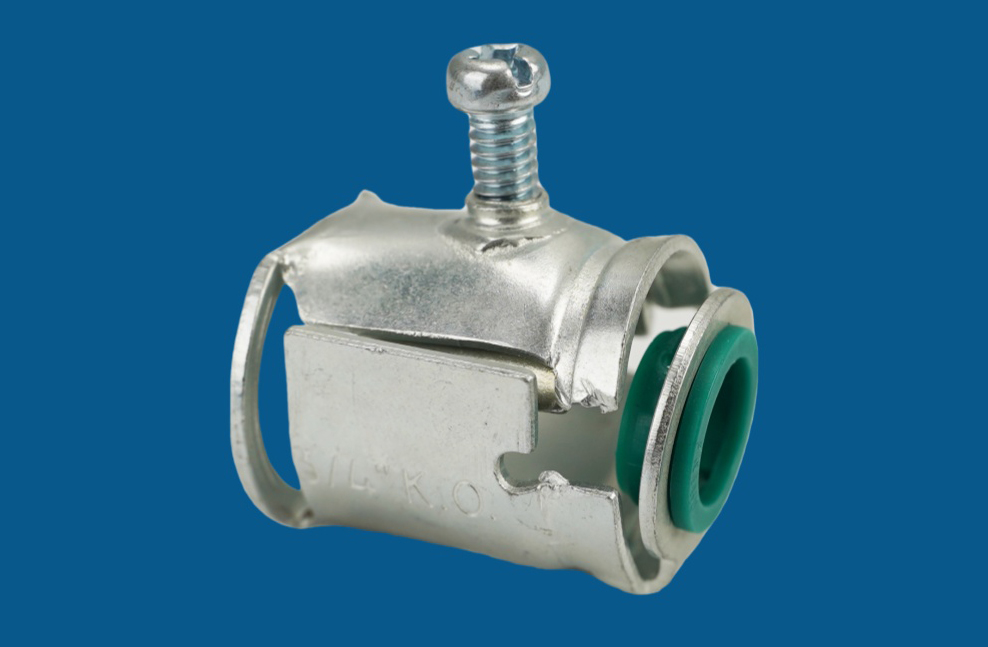

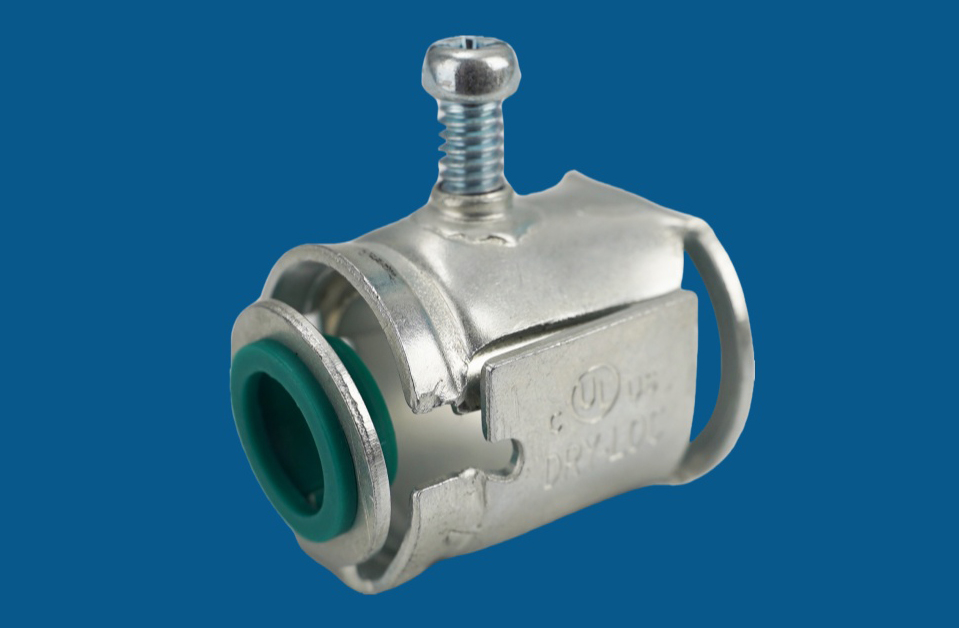

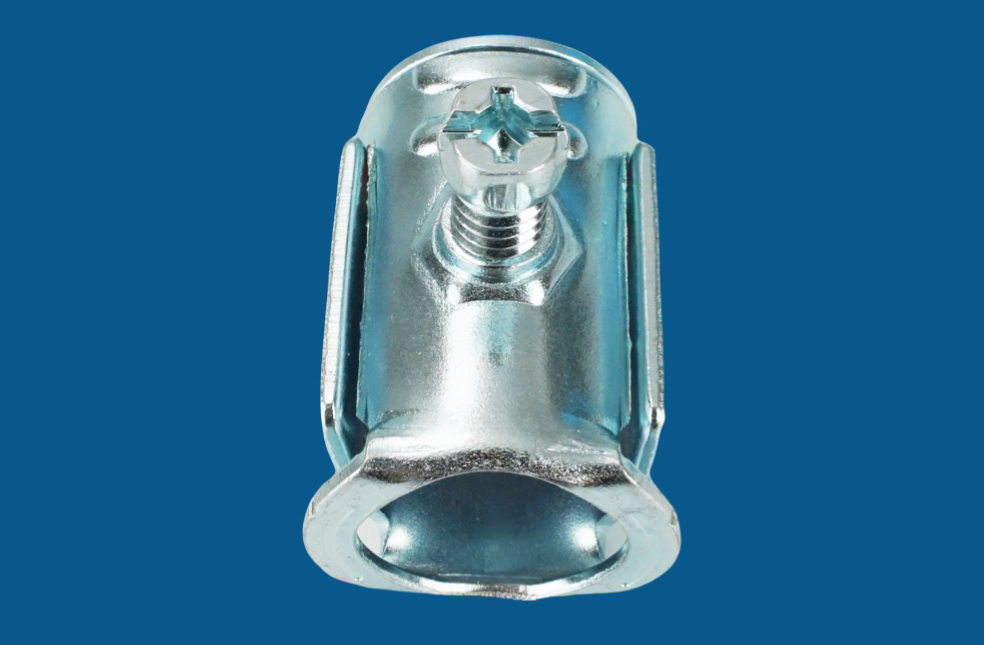

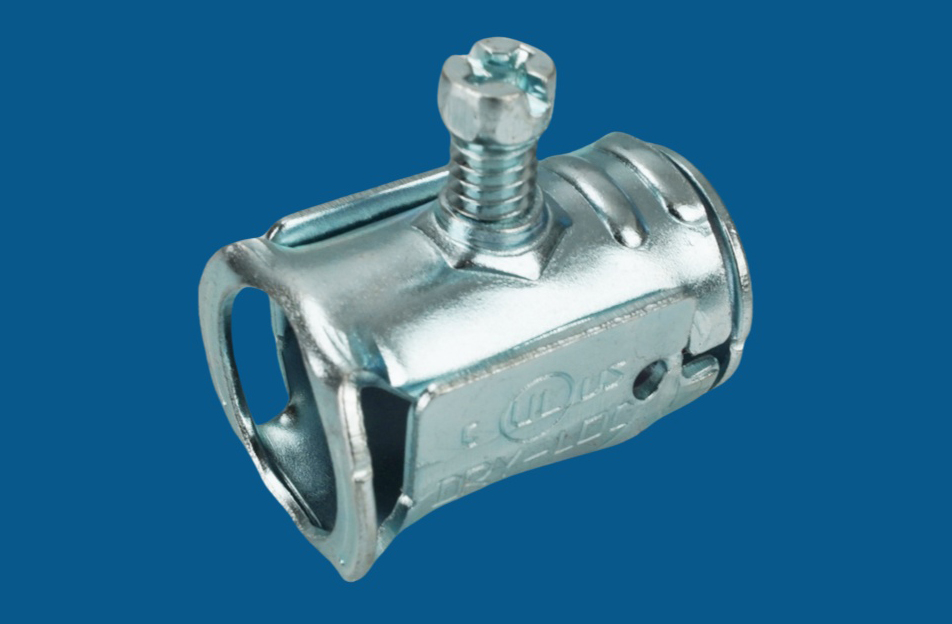

ELECMAN® Quicklock Connector Snap-In Single Type

MATERIAL: Steel

FINISH: Zinc plated

TYPE: Snap-in set screw

CERTIFICATE:

UL Listed, File No.: E547878

APPLICATION:

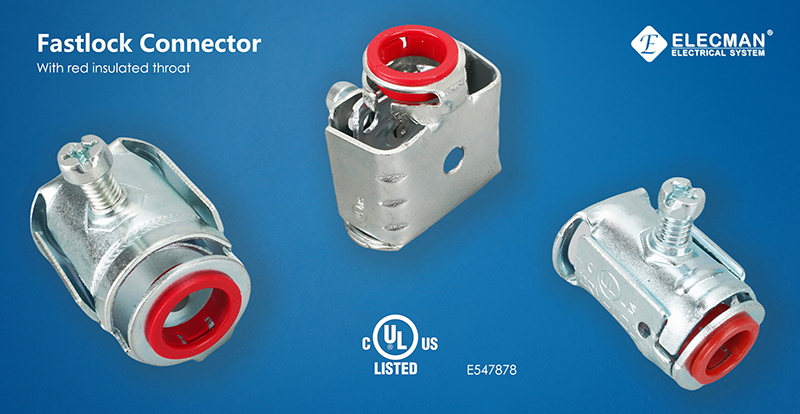

ELECMAN® Fastlock connectors with insulated throats are designed for connecting flexible metal conduits, such as metal clad (MC) cables or armored cables, to electrical junction boxes or enclosures. These connectors feature a snap-on design that fits securely into box knockout openings, eliminating the need for locknuts. They accommodate multiple cable sizes and provide excellent corrosion resistance thanks to their electroplated zinc finish.

FEATURES:

·Carbon Steel

·Zinc plated

·Saddle-base connector

·Combo head set-screw

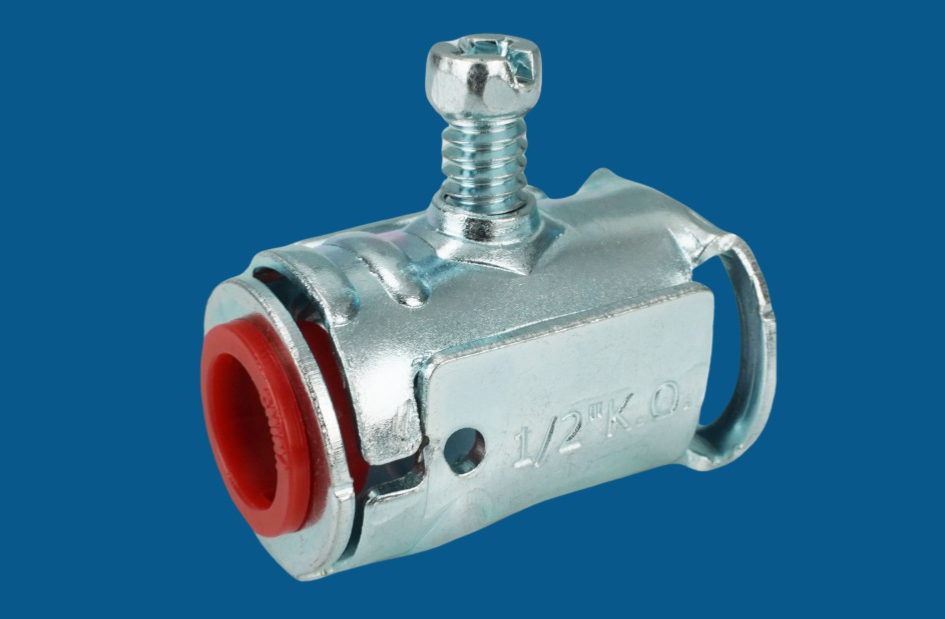

·Different color insulation are available

CABLE RANGE:

Steel AC: 14/2 (0.475") - 10/3 (0.565")

AL AC: 14/2 (0.464") - 10/3 (0.610")

Steel MCI: 14/2 (0.455") - 10/3 (0.565")

AL MCI: 14/2 (0.455") - 10/3 (0.600")

Steel HCF AC: 14/2 (0.475") - 10/3 (0.565")

AL HCF AC: 14/2 (0.464") - 10/3 (0.610")

AL MCI-A: 14/2 (0.385") - 10/3 (0.510")

HCF MCI-A: 14/2 (0.385") - 10/3 (0.510")

Steel/AL FMC/RWFMC: 3/8"

PACKING INFORMATION:

INTERNAL PACKING: Small carton box or self sealing plastic bag
EXTERNAL PACKING: Corrugated Carton
