Malleable Iron Insulated Grounding Conduit Bushing
Material : Malleable iron
Surface Finish : Zinc plated
Type : Insulated

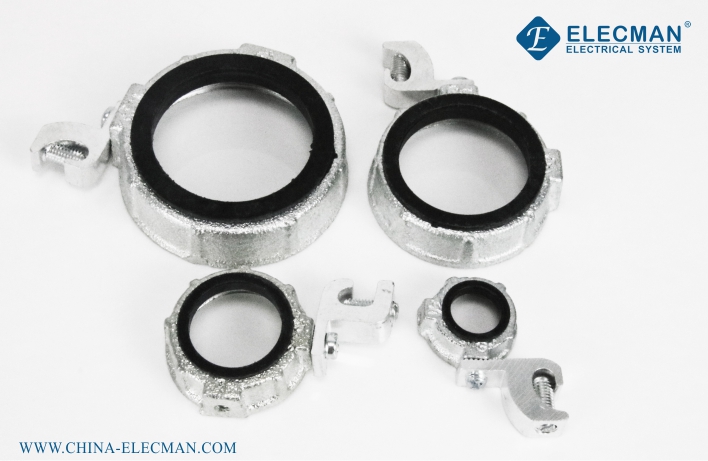

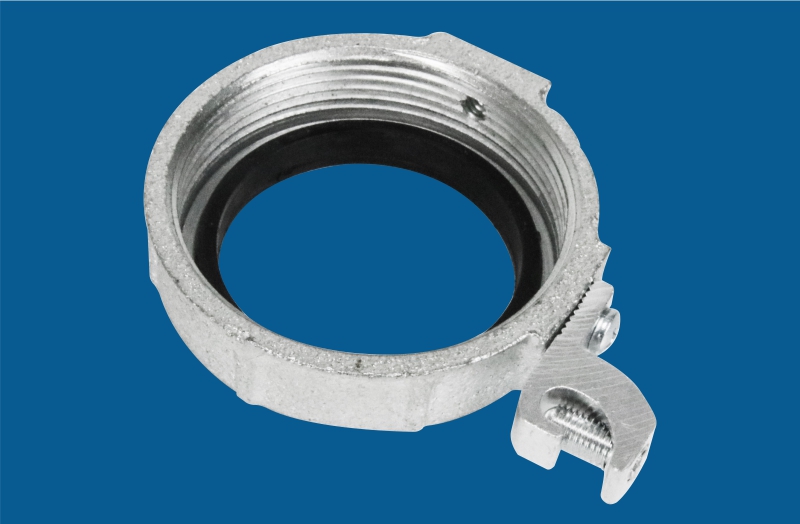

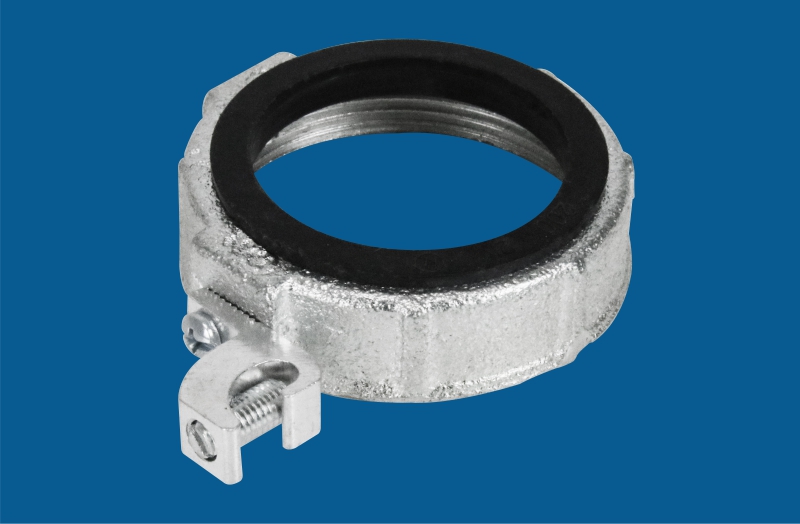

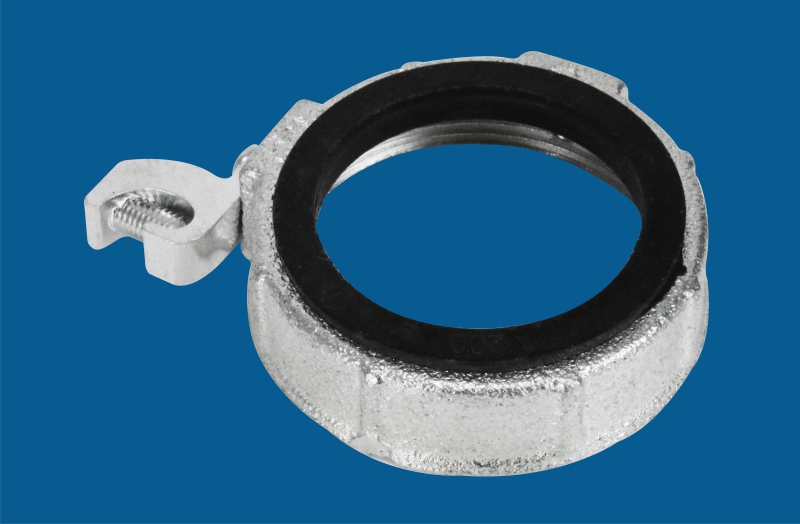

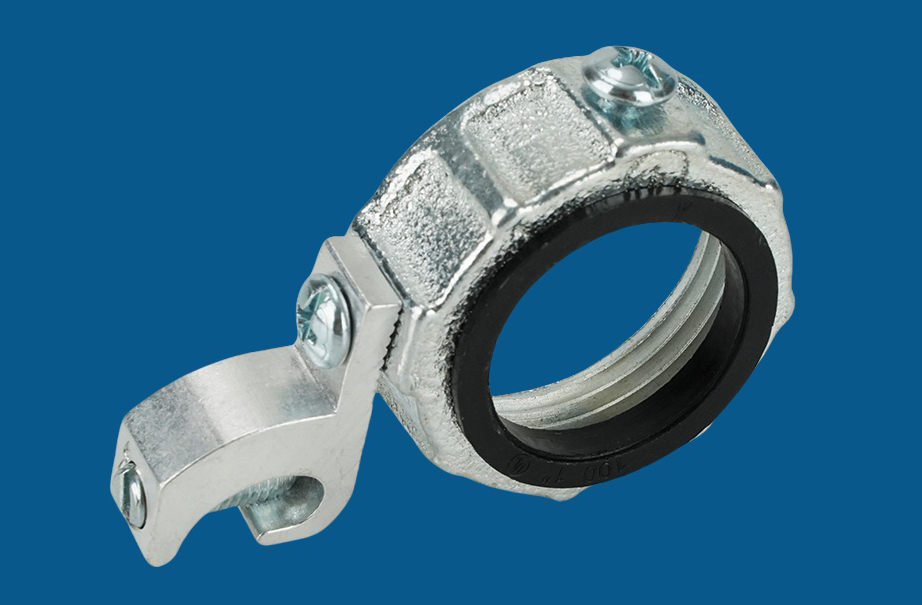

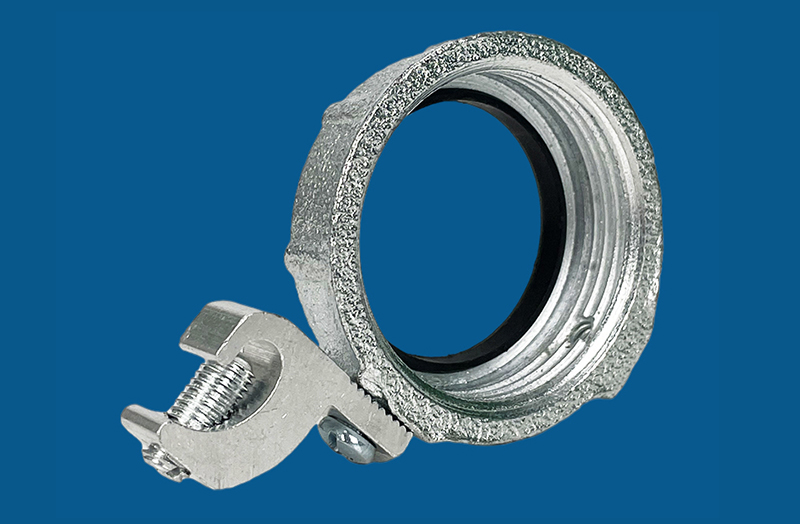

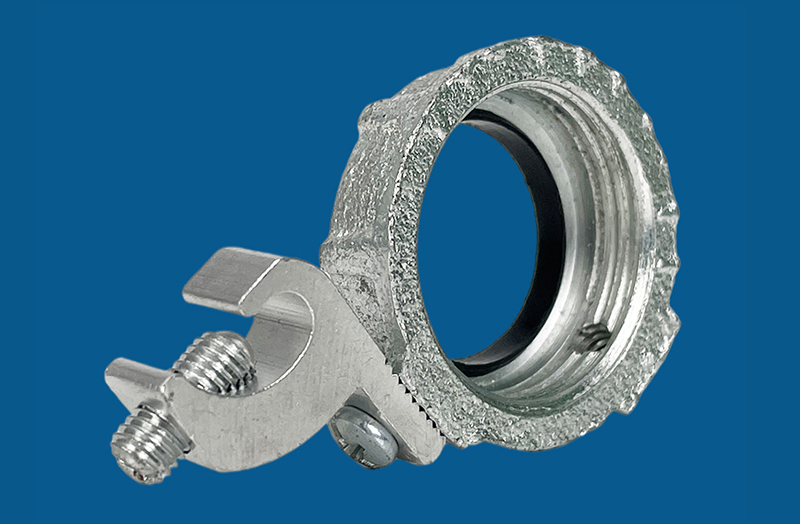

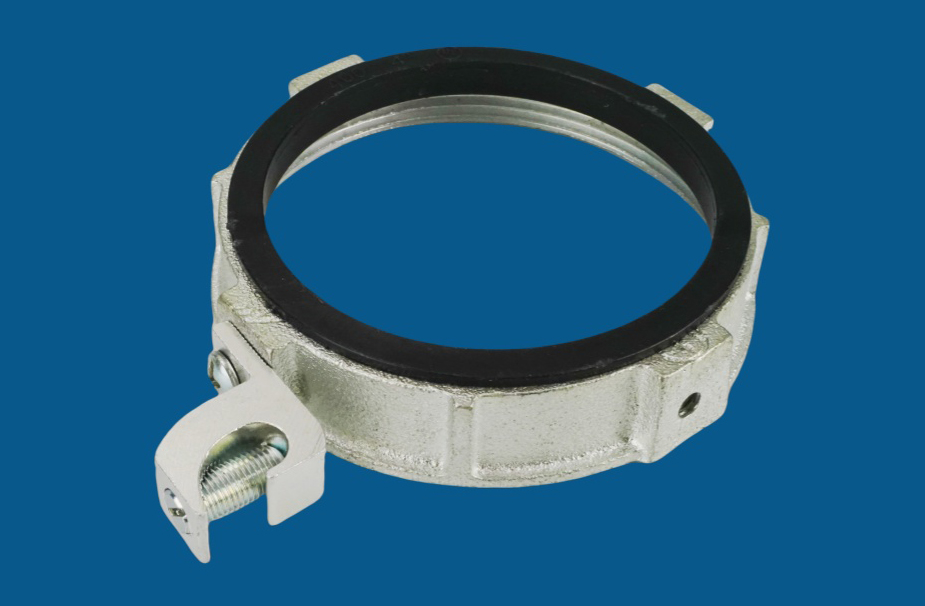

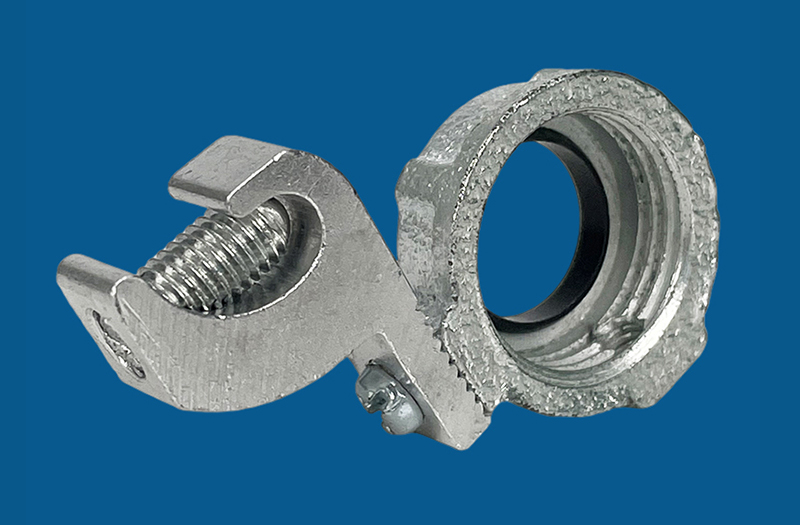

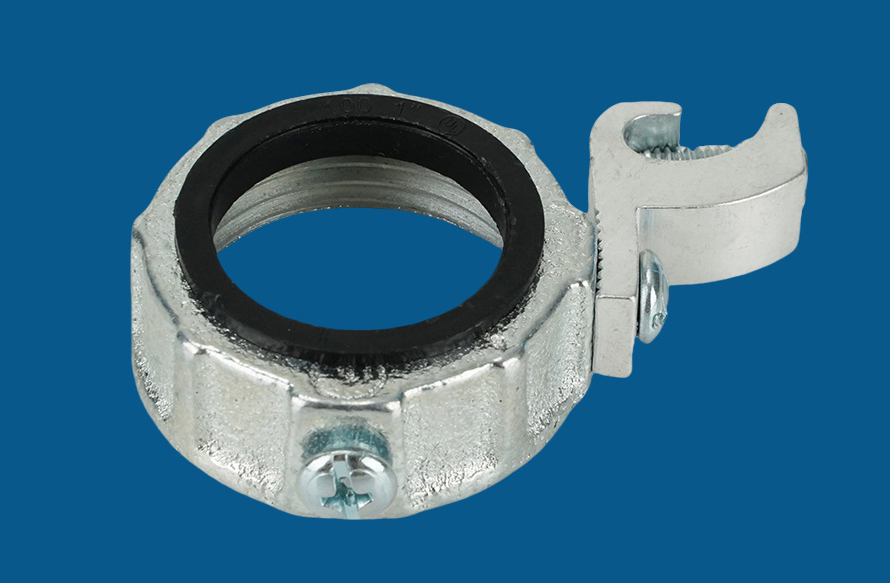

ELECMAN® Malleable Iron Insulated Grounding Conduit Bushing
PRODUCT: Insulated grounding bushings
MATERIAL: Malleable iron body, plastic insulator, aluminum lug, steel clamping screw , steel set screw
TYPE: Grounding
CERTIFICATE:
UL Listed, File No.: E541187
APPLICATION:
ELECMAN®Insulated grounding bushings are used with threaded IMC/Rigid conduit to provide a means of grounding conduit through an insulated bushing.
FEATURES:
·Resilient plastic liner, resists corrosion chem and temperature extremes
·1 set screw provide with each fittings locks bushing in any desired position
·External stainless steel hardware as standard
| CATALOG NUMBER | TRADE SIZE | GROUNDING LUG WIRE SIZE | |
| min | max | ||
| MGB050 | 1/2" | 14 | 4 |
| MGB075 | 3/4" | 14 | 4 |
| MGB100 | 1" | 14 | 4 |
| MGB125 | 1-1/4" | 14 | 4 |
| MGB150 | 1-1/2" | 14 | 4 |
| MGB200 | 2" | 14 | 4 |
| MGB250 | 2-1/2" | 14 | 1/0 |
| MGB300 | 3" | 14 | 1/0 |
| MGB400 | 4" | 14 | 1/0 |
| MGB500 | 5" | 6 | 250 MCM |
| MGB600 | 6" | 6 | 250 MCM |
PACKING INFORMATION:
INTERNAL PACKING: Small carton box or self sealing plastic bag
EXTERNAL PACKING: Corrugated Carton
ELECMAN® Malleable Iron Conduit Bushing with Lug Data Sheet.pdf
E547877 Grounding Fittings UL Certificate.pdf
