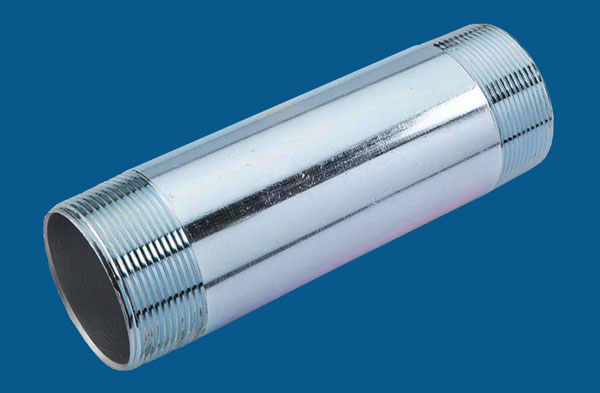

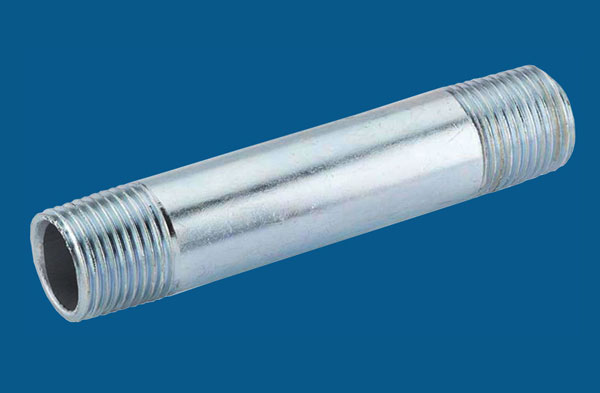

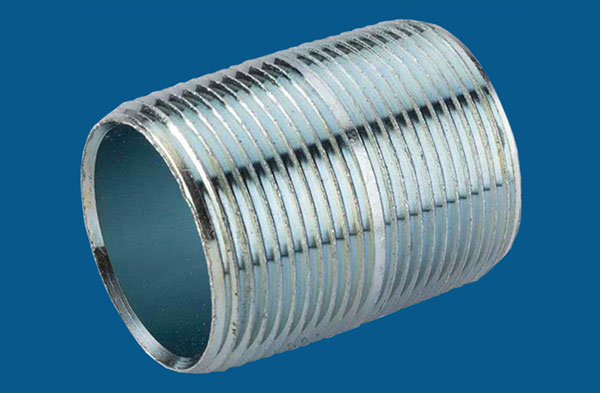

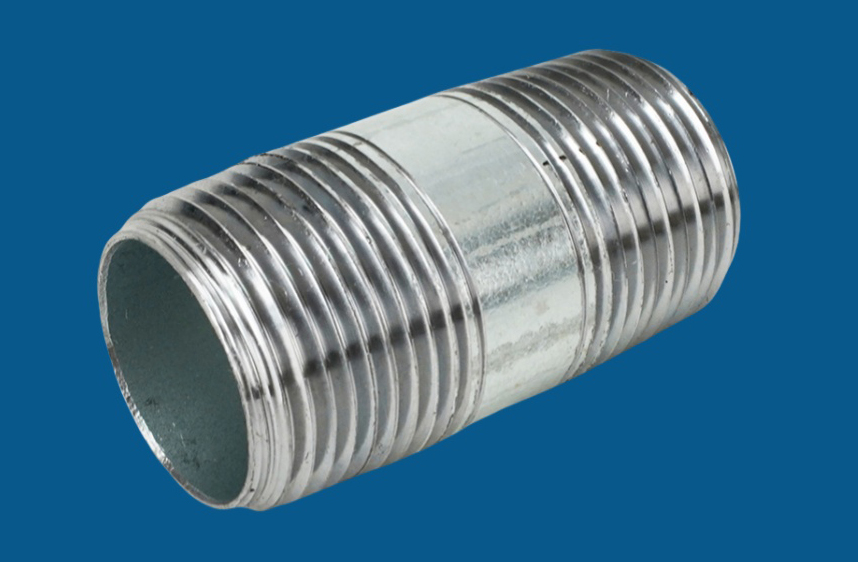

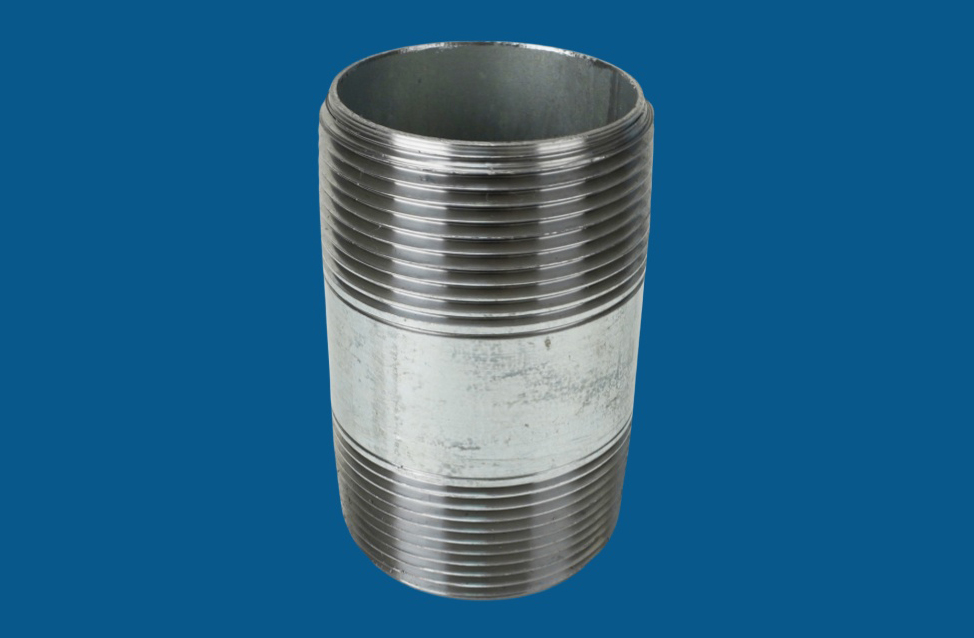

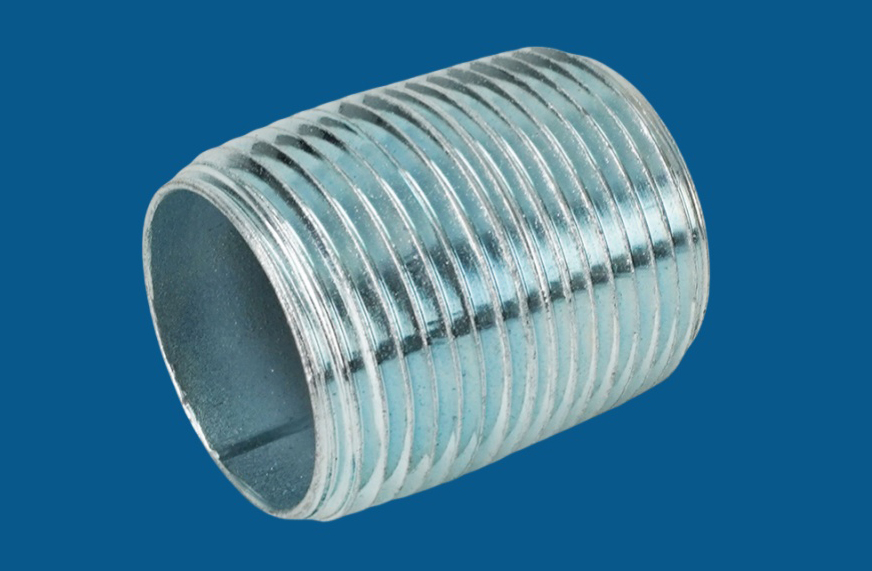

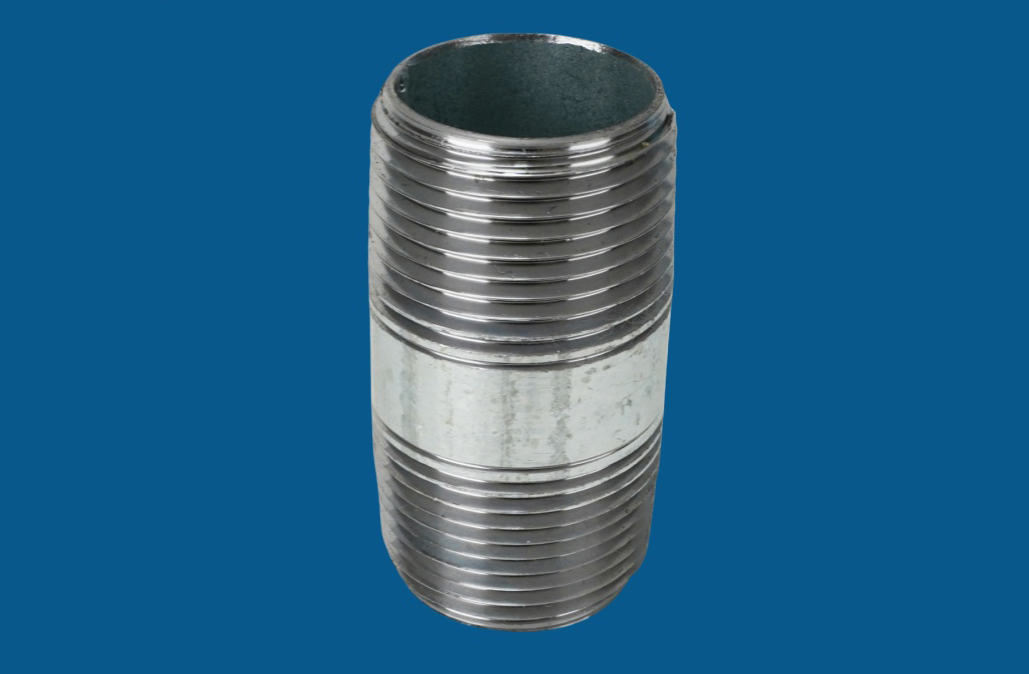

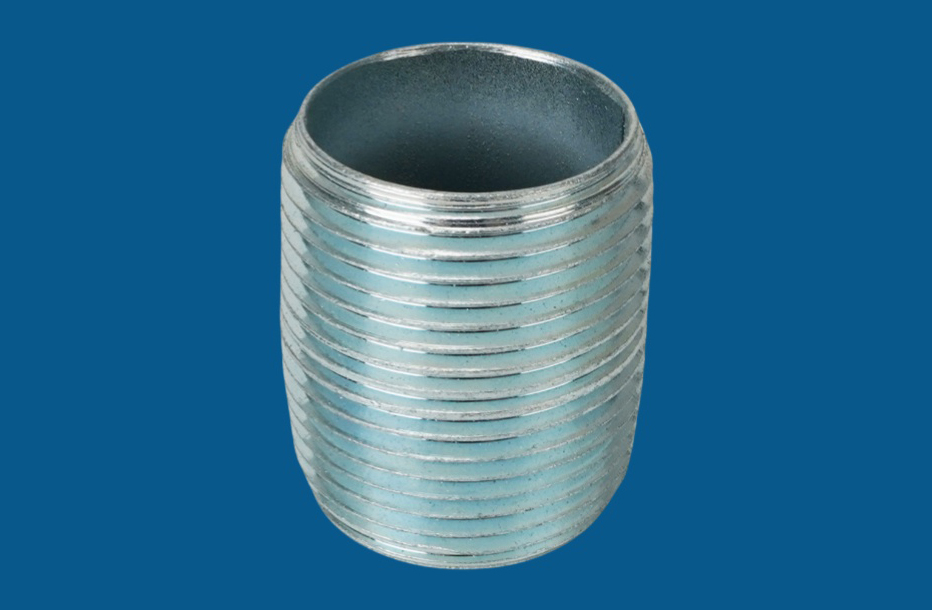

Conduit Nipple
Material : Steel
Surface Finish : Zinc plated
Type : NPT thread

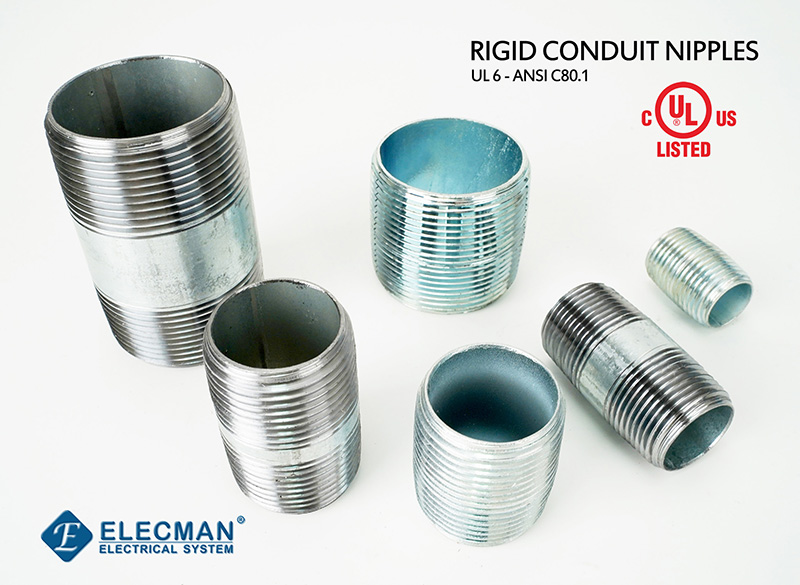

ELECMAN® Conduit Nipple
MATERIAL: Steel
FINISH: Zinc plated or hot dipped galvanized
TYPE: NPT threaded
CERTIFICATE:
UL Listed, File No.: E499650
APPLICATION:
ELECMAN® RIGID/IMC nipples are used to extend a length of threaded Rigid or IMC conduit and to connect two steel outlet boxes or metal enclosures in wet or dry locations
FEATURES:
·NPT thread
·High corrosion resistance
·UL 6 and ANSI C80.1

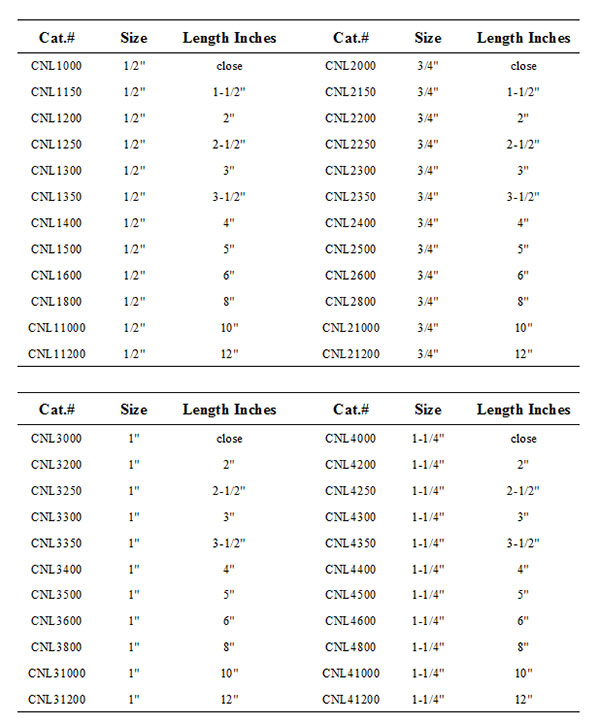

| CATALOG NUMBER | TRADE SIZE | LENGTH INCHES |
| CNL1000 | 1/2" | CLOSE |
| CNL1150 | 1/2" | 1-1/2" |
| CNL1200 | 1/2" | 2" |
| CNL1250 | 1/2" | 2-1/2" |
| CNL1300 | 1/2" | 3" |
| CNL1350 | 1/2" | 3-1/2" |
| CNL1400 | 1/2" | 4" |
| CNL1500 | 1/2" | 5" |
| CNL1600 | 1/2" | 6" |
| CNL1800 | 1/2" | 8" |
| CNL11000 | 1/2" | 10" |
| CNL11200 | 1/2" | 12" |
| CATALOG NUMBER | TRADE SIZE | LENGTH INCHES |
| CNL2000 | 3/4" | CLOSE |
| CNL2150 | 3/4" | 1-1/2" |
| CNL2200 | 3/4" | 2" |
| CNL2250 | 3/4" | 2-1/2" |
| CNL2300 | 3/4" | 3" |
| CNL2350 | 3/4" | 3-1/2" |
| CNL2400 | 3/4" | 4" |
| CNL2500 | 3/4" | 5" |
| CNL2600 | 3/4" | 6" |
| CNL2800 | 3/4" | 8" |
| CNL21000 | 3/4" | 10" |
| CNL21200 | 3/4" | 12" |
| CATALOG NUMBER | TRADE SIZE | LENGTH INCHES |
| CNL3000 | 1" | CLOSE |
| CNL3200 | 1" | 2" |
| CNL3250 | 1" | 2-1/2" |
| CNL3300 | 1" | 3" |
| CNL3350 | 1" | 3-1/2" |
| CNL3400 | 1" | 4" |
| CNL3500 | 1" | 5" |
| CNL3600 | 1" | 6" |
| CNL3800 | 1" | 8" |
| CNL31000 | 1" | 10" |
| CNL31200 | 1" | 12" |
| CATALOG NUMBER | TRADE SIZE | LENGTH INCHES |
| CNL4000 | 1-1/4" | CLOSE |
| CNL4200 | 1-1/4" | 2" |
| CNL4250 | 1-1/4" | 2-1/2" |
| CNL4300 | 1-1/4" | 3" |
| CNL4350 | 1-1/4" | 3-1/2" |
| CNL4400 | 1-1/4" | 4" |
| CNL4500 | 1-1/4" | 5" |
| CNL4600 | 1-1/4" | 6" |
| CNL4800 | 1-1/4" | 8" |
| CNL41000 | 1-1/4" | 10" |
| CNL41200 | 1-1/4" | 12" |

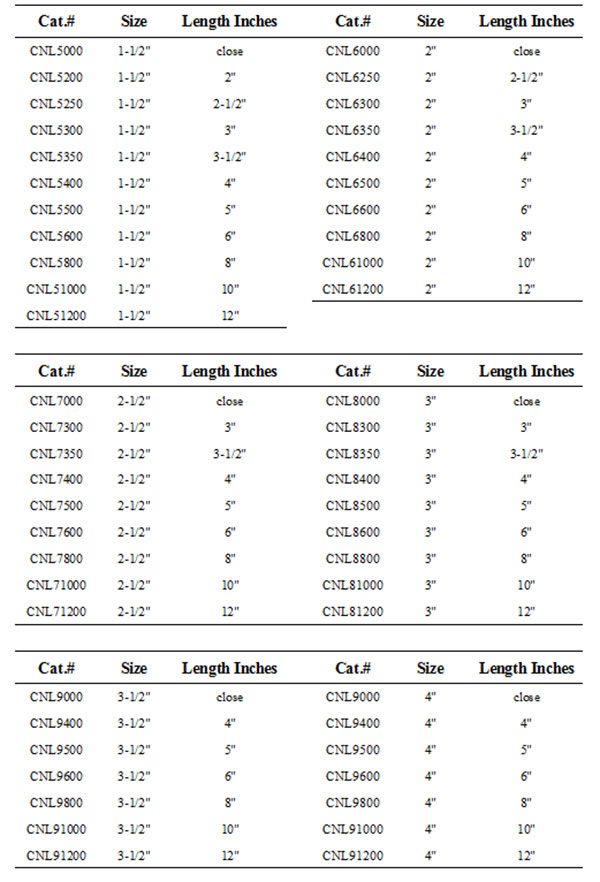

| CATALOG NUMBER | TRADE SIZE | LENGTH INCHES |
| CNL5000 | 1-1/2" | CLOSE |
| CNL5200 | 1-1/2" | 2" |
| CNL5250 | 1-1/2" | 2-1/2" |
| CNL5300 | 1-1/2" | 3" |
| CNL5350 | 1-1/2" | 3-1/2" |
| CNL5400 | 1-1/2" | 4" |
| CNL5500 | 1-1/2" | 5" |
| CNL5600 | 1-1/2" | 6" |
| CNL5800 | 1-1/2" | 8" |
| CNL51000 | 1-1/2" | 10" |
| CNL51200 | 1-1/2" | 12" |
| CATALOG NUMBER | TRADE SIZE | LENGTH INCHES |
| CNL6000 | 2" | CLOSE |
| CNL6250 | 2" | 2-1/2" |
| CNL6300 | 2" | 3" |
| CNL6350 | 2" | 3-1/2" |
| CNL6400 | 2" | 4" |
| CNL6500 | 2" | 5" |
| CNL6600 | 2" | 6" |
PACKING INFORMATION:
INTERNAL PACKING: Small carton box or self sealing plastic bag
EXTERNAL PACKING: Corrugated Carton
