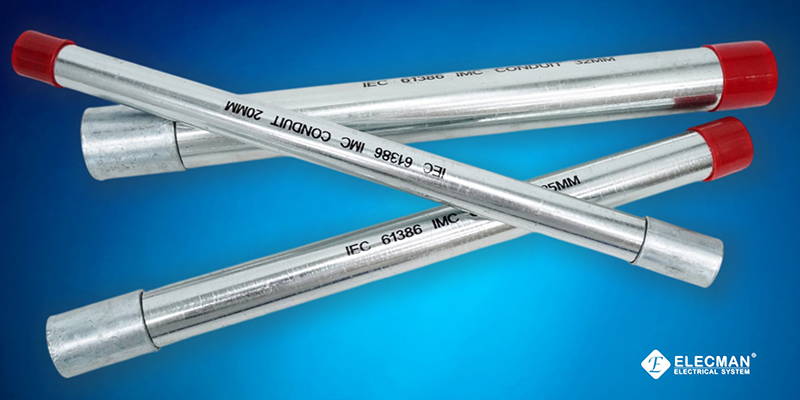

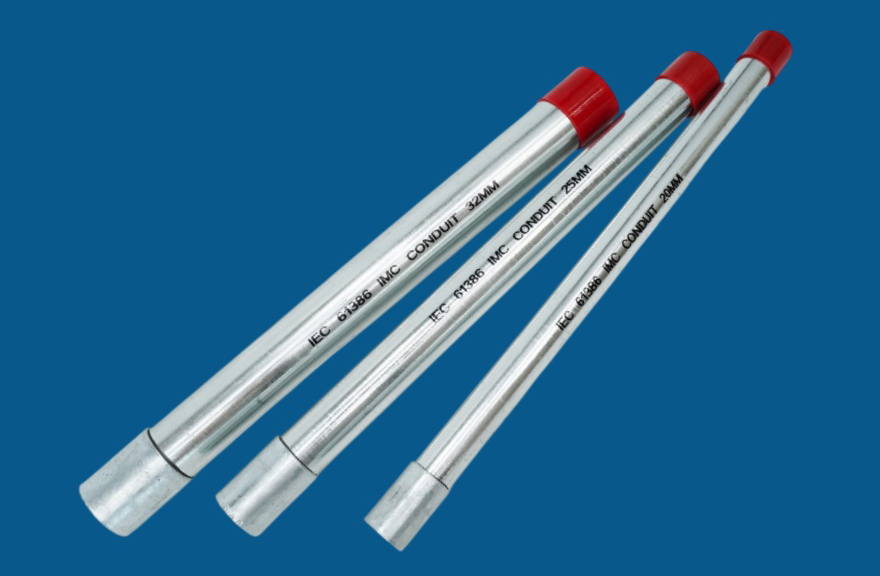

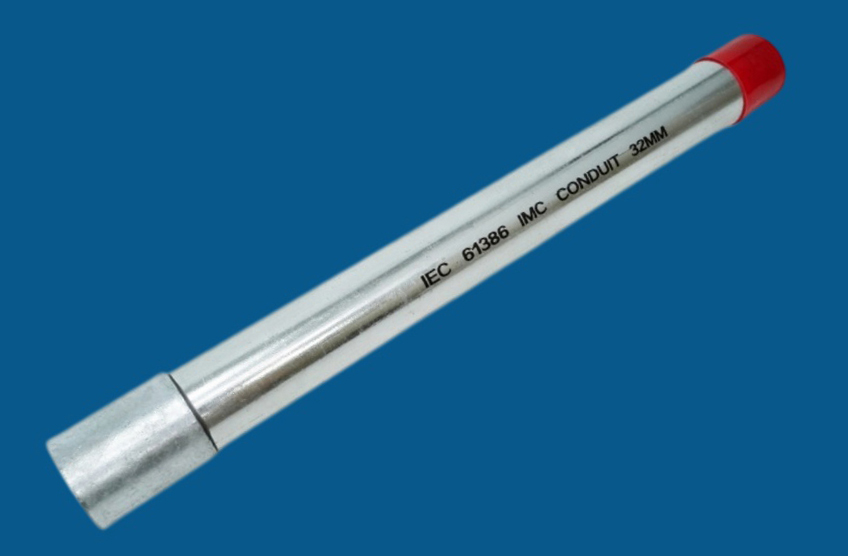

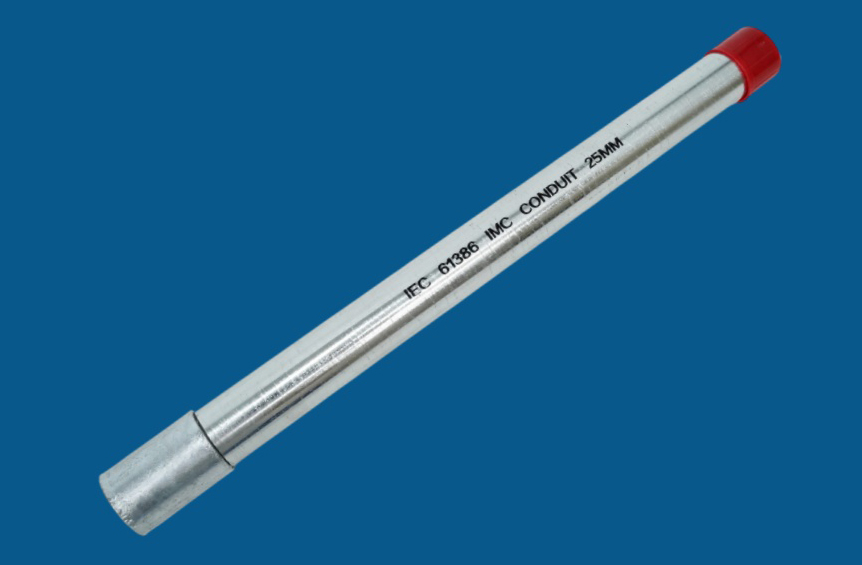

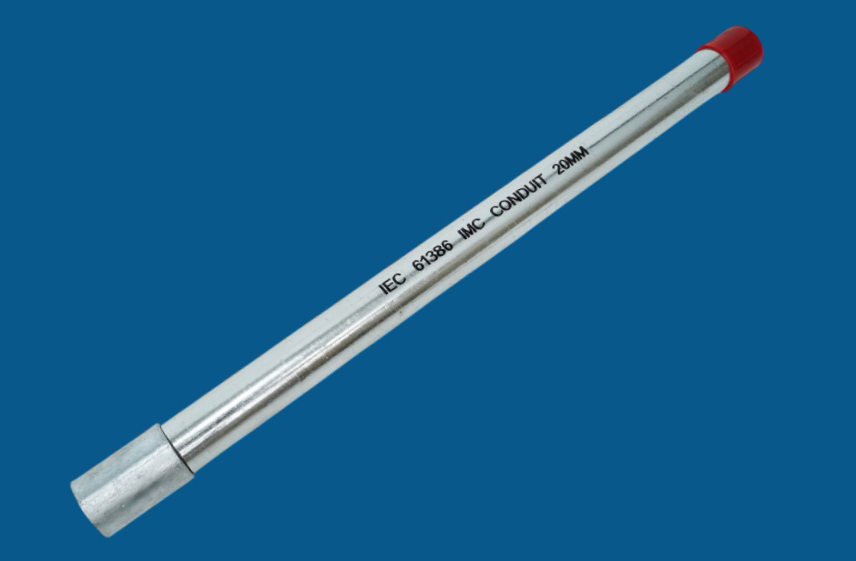

ELECMAN® IEC 61386 IMC Conduit

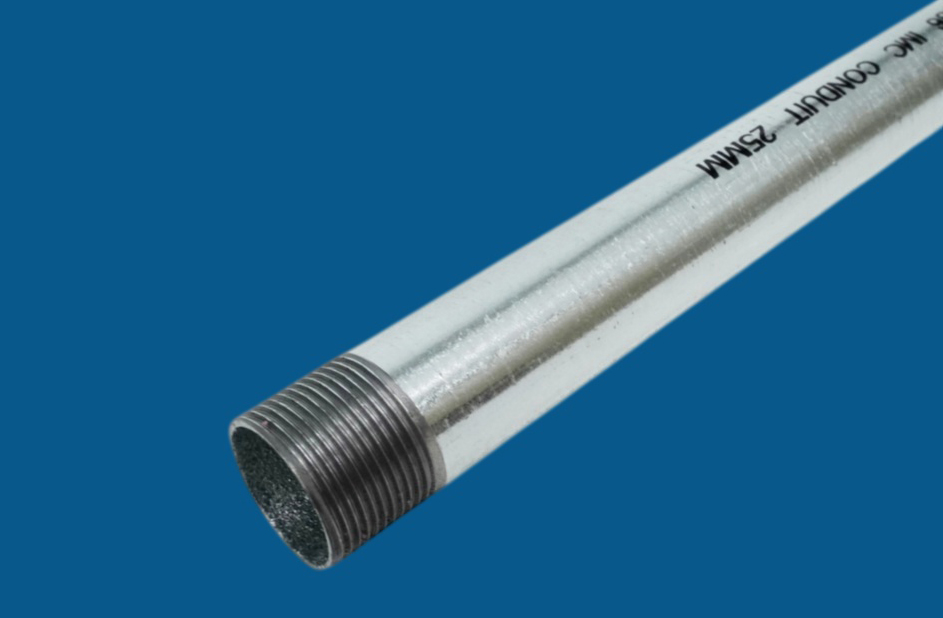

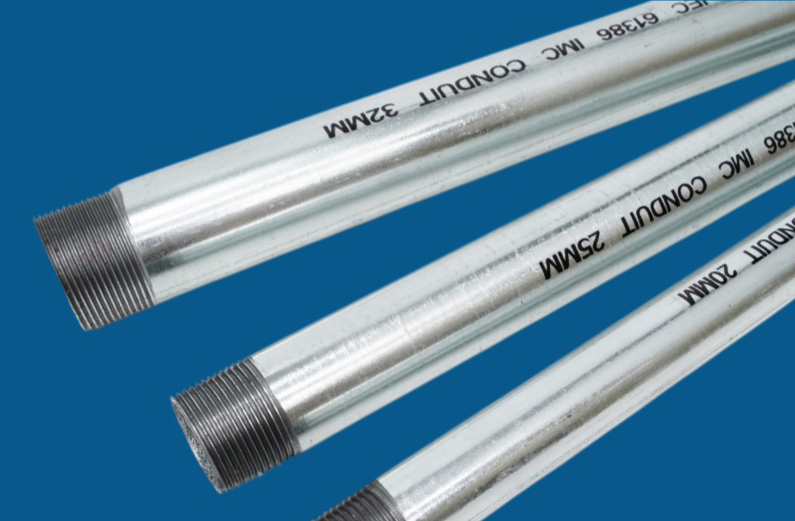

ELECMAN® IEC 61386 IMC Conduit is a medium-wall rigid galvanized steel tube designed for cable protection in electrical installations. Manufactured to IEC 61386‑21 standards, it adopts hot-dipped galvanization inside and outside for reliable anti-corrosion performance. Both ends come with pre-cut metric threads and smooth deburred inner surfaces to avoid scratching cable insulation. Thicker than EMT yet lighter than RMC, it supports easy connection with matching fittings. Suitable for low-voltage systems up to 1000V AC, this metric conduit works for exposed or concealed wiring indoors and outdoors. Widely certified for South American projects, it delivers strong mechanical protection for commercial and industrial power and control cables.

Applications:

Indoor / outdoor exposed or concealed wiring: power circuits, lighting, control cables in industrial plants, shopping malls, public construction.

Features:

·Medium wall thickness: thicker than EMT, lighter and easier to handle than heavy RMC rigid conduit

·Threadable for fittings, couplings & elbows

·Meets IEC 61386‑1 general requirements + IEC 61386‑21 rigid conduit specific rules

·Available metric sizes: commonly 20mm ~ 50mm

·Certified for SEC approval, widely used in South American IEC electrical projects

Certification:

CE
