Steel EMT Slip Coupling Set Screw Type
Material : Steel
Surface Finish : Zinc plated
Type : Set Screw

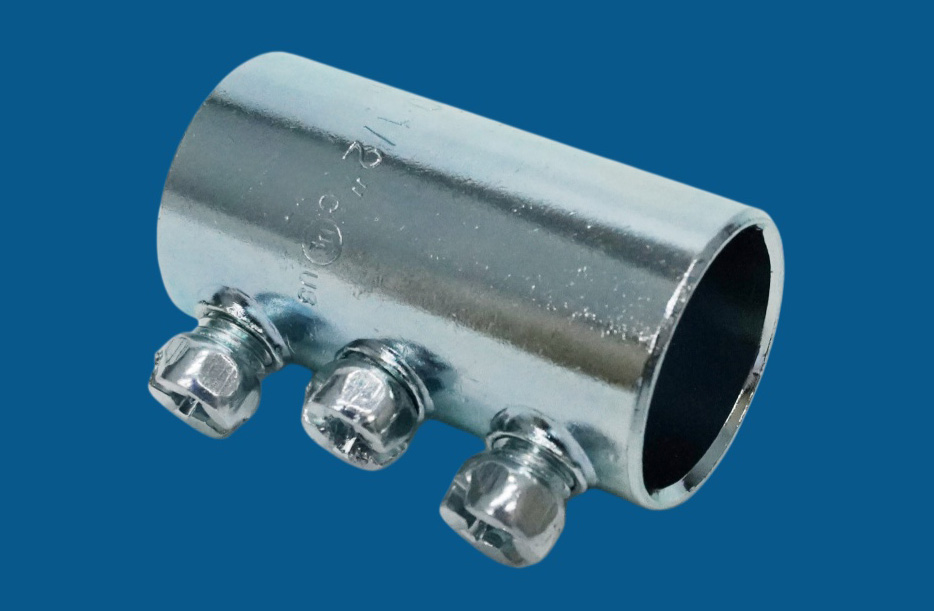

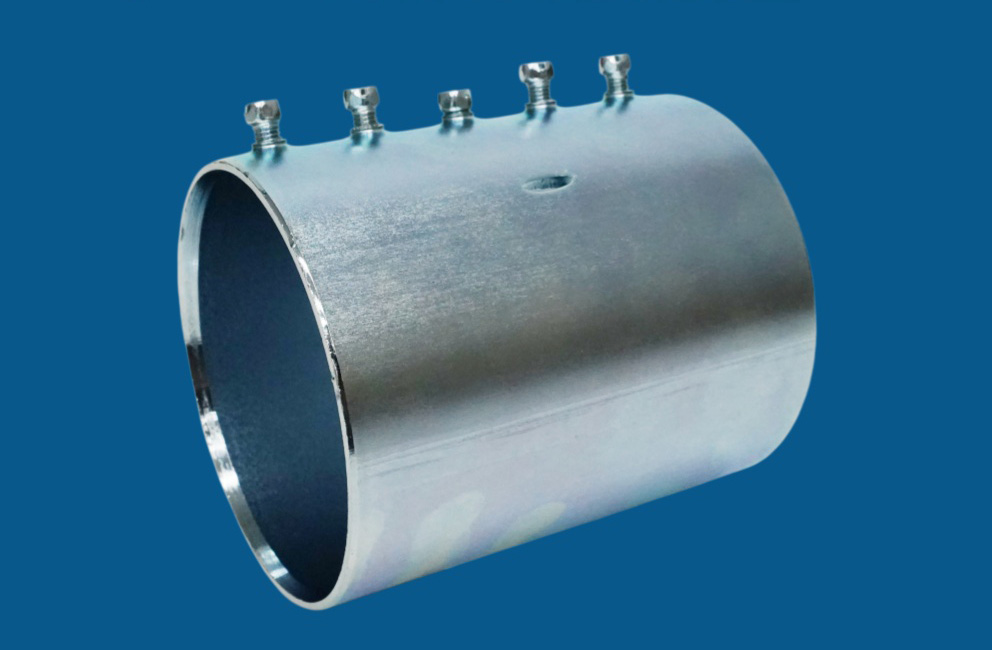

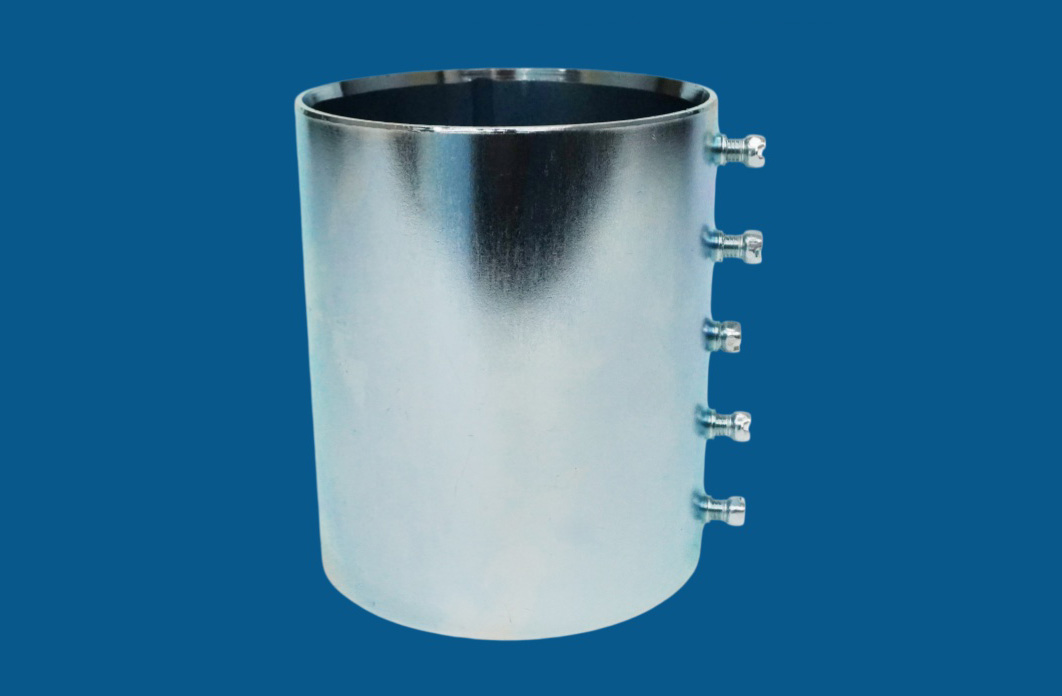

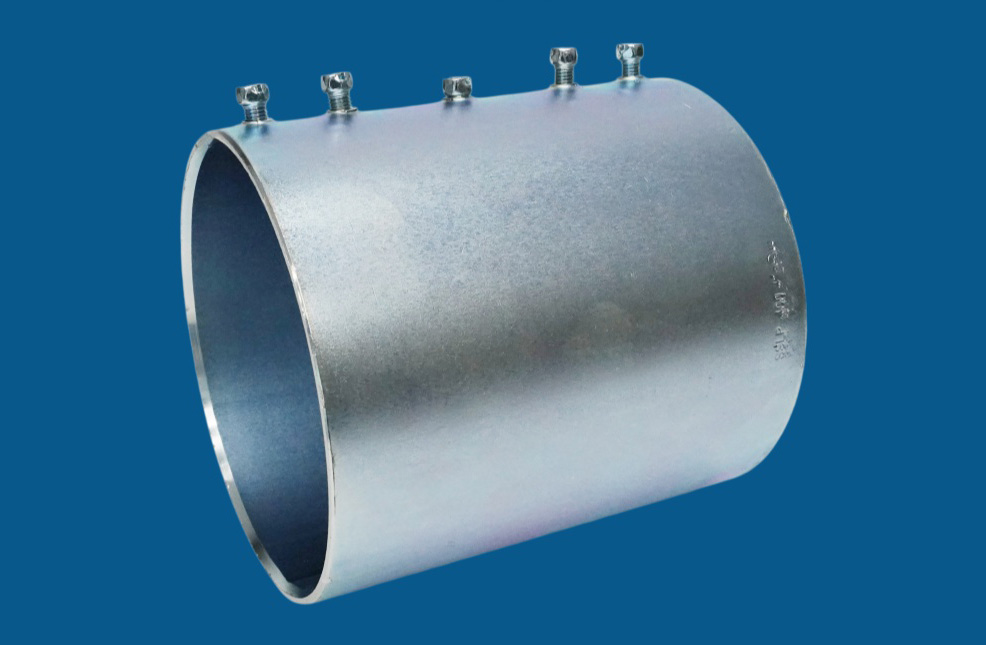

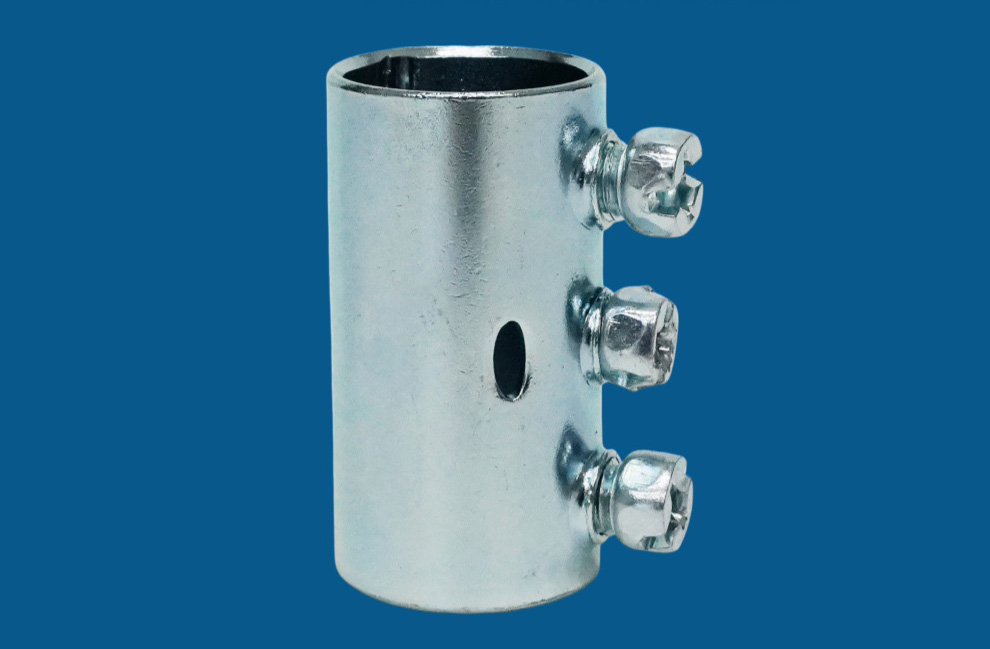

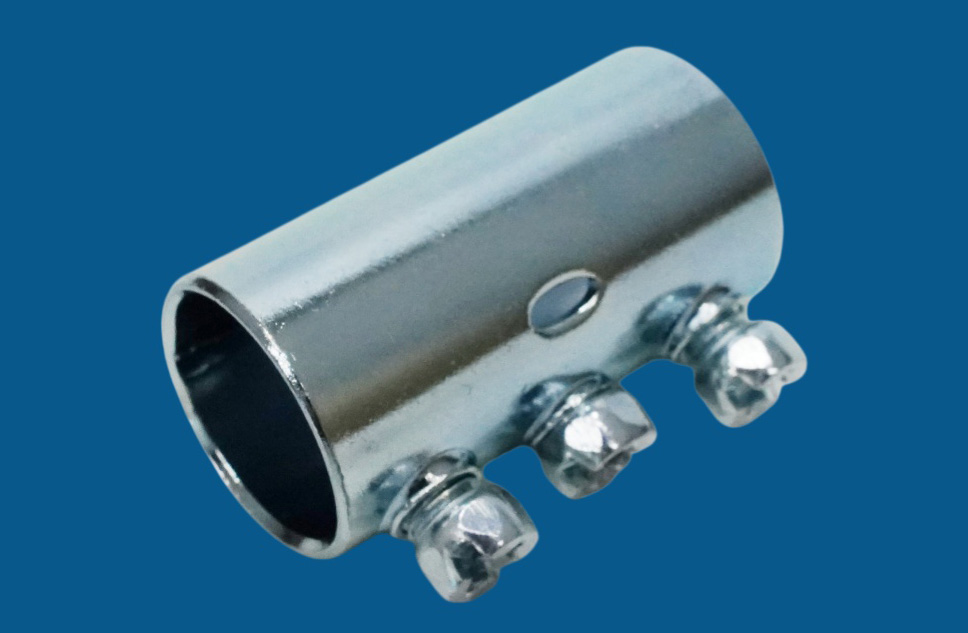

ELECMAN® Steel EMT Slip Coupling Set Screw Type
Steel EMT set-screw slip couplings adopt all-steel structure. Equipped with exclusive central set screws, the fitting can slide freely onto EMT conduits to achieve tight, precise matching. Robust steel material delivers reliable mechanical strength and stable linking performance for conduit joints.
PRODUCT: EMT connector
MATERIAL: Zinc die cast
TYPE: Set screw type
APPLICATION:

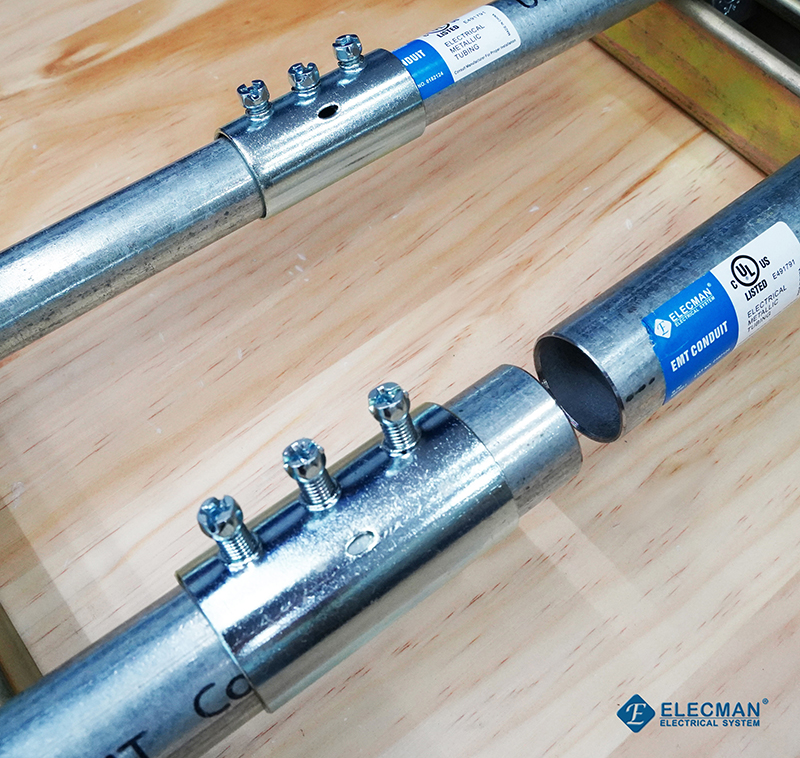

Steel EMT slip couplings set screw serve to join two EMT conduit ends. It removes the need for
flexible conduits between prefabricated conduit brackets. The design shortens workshop
prefabrication hours, accelerates on-site construction progress and greatly boosts overall
construction efficiency.
FEATURES:
·Ideal choice for EMT connection in confined construction areas
·Built with diamond inspection window for clear visibility of both conduit ends
·Back off the center stop screw to conveniently slip the coupling onto conduits
·Fasten the center stop screw tightly after conduit alignment

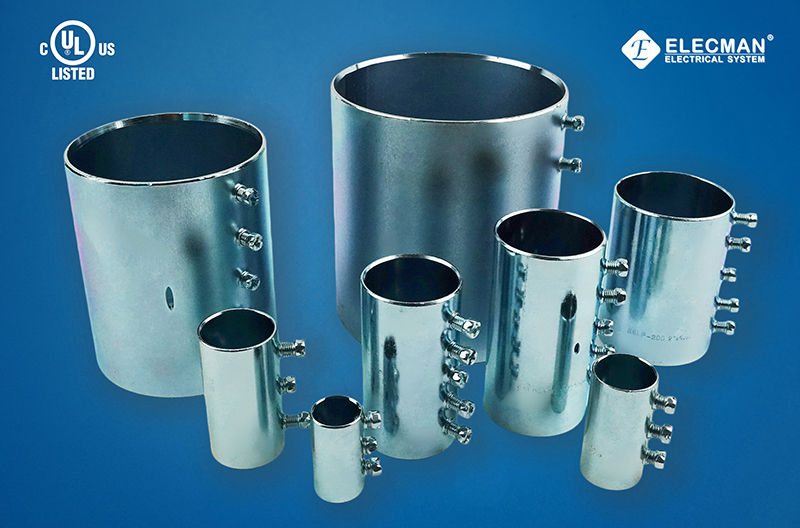

·Sizes ranging from 2-1/2" to 4" are UL listed for both rigid and IMC conduits
CERTIFICATION:
UL514B
UL File No.: E513114
| CATALOG NUMBER | TRADE SIZE | MASTER PACK | WEIGHT/C | VOLUME/C |
| SSLP50 | 1/2" | 400 | 14.90 | 0.014 |
| SSLP75 | 3/4" | 250 | 13.90 | 0.014 |
| SSLP100 | 1" | 125 | 10.60 | 0.011 |
| SSLP125 | 1-1/4" | 100 | 16.40 | 0.017 |
| SSLP150 | 1-1/2" | 60 | 13.20 | 0.017 |
| SSLP200 | 2" | 50 | 11.50 | 0.023 |
| SSLP250 | 2-1/2" | 10 | 5.40 | 0.010 |
| SSLP300 | 3" | 10 | 8.20 | 0.014 |
| SSLP350 | 3-1/2" | 10 | 10.00 | 0.020 |
| SSLP400 | 4" | 5 | 6.30 | 0.013 |
PACKING INFORMATION:
INTERNAL PACKING: Small carton box or self sealing plastic bag
EXTERNAL PACKING: Corrugated Carton
ELECMAN® EMT Slip Coupling Data Sheet - SSLP.pdf
E513114 EMT Slip Coupings UL Certification.pdf
