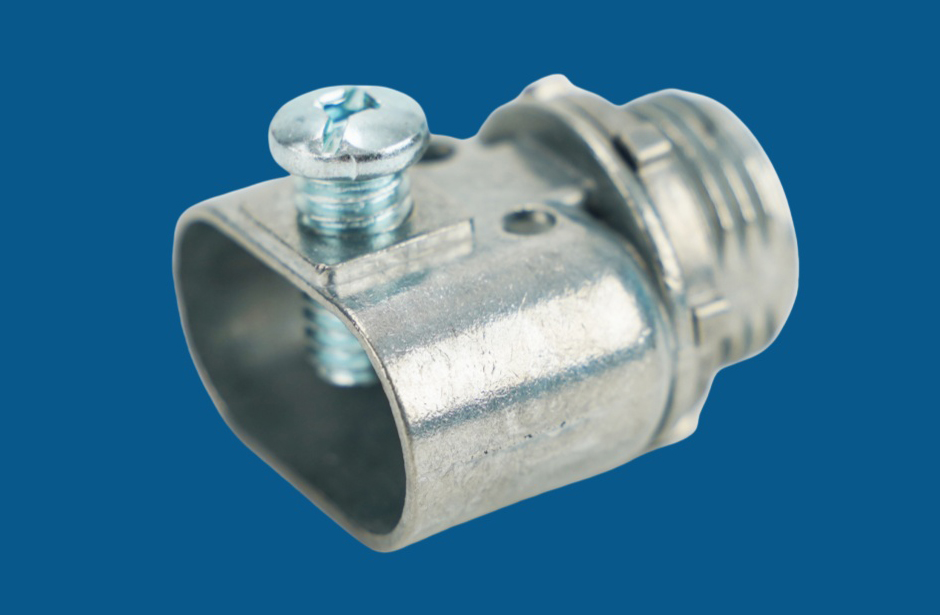

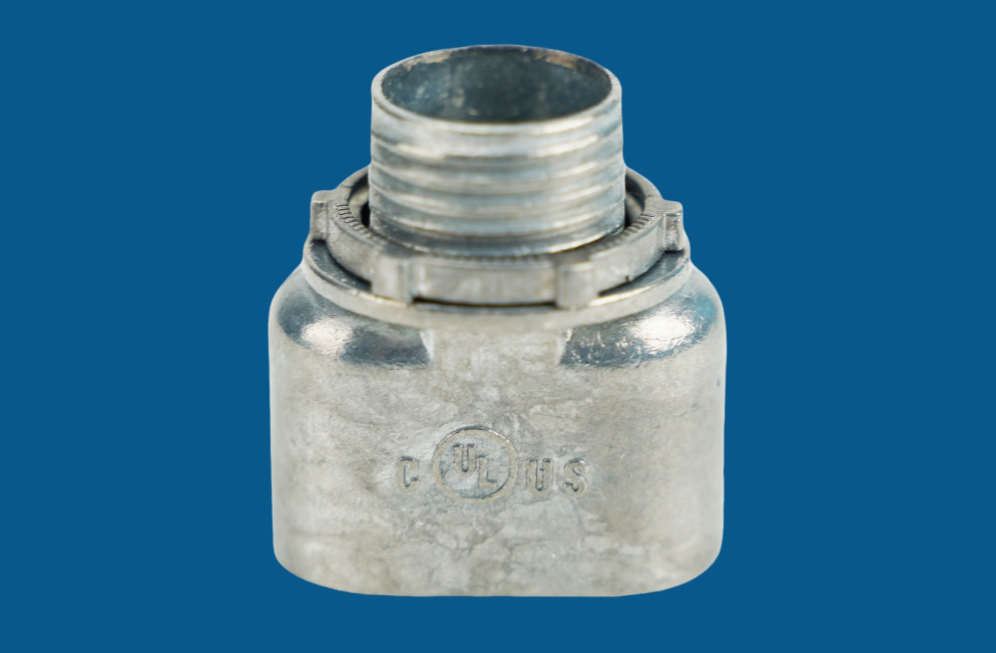

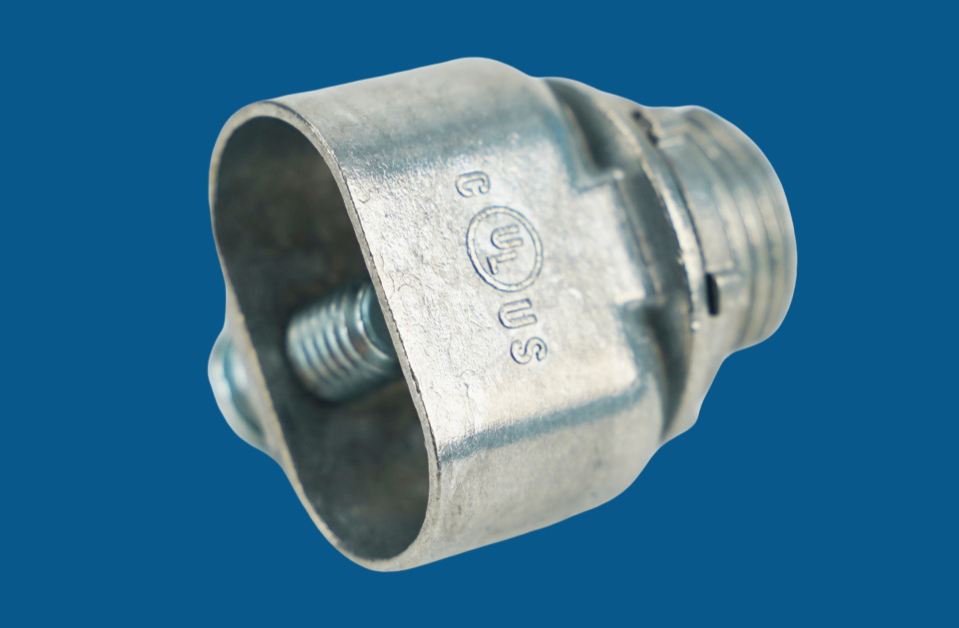

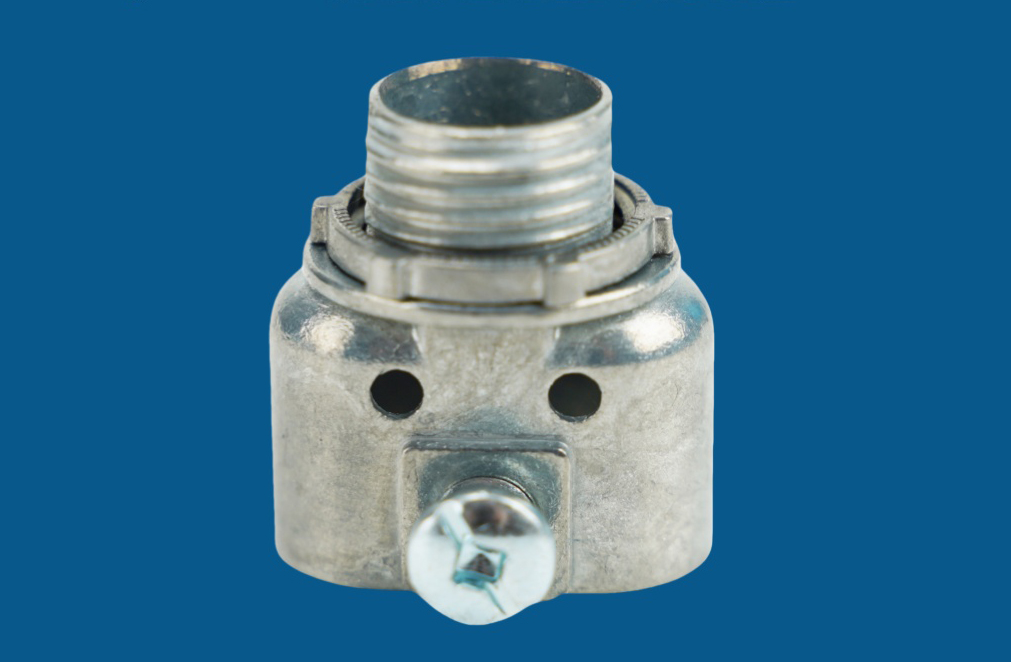

Duplex Connector One Screw Set Screw Type
Material : Zinc die cast
Surface Finish : Polishing
Type : One screw

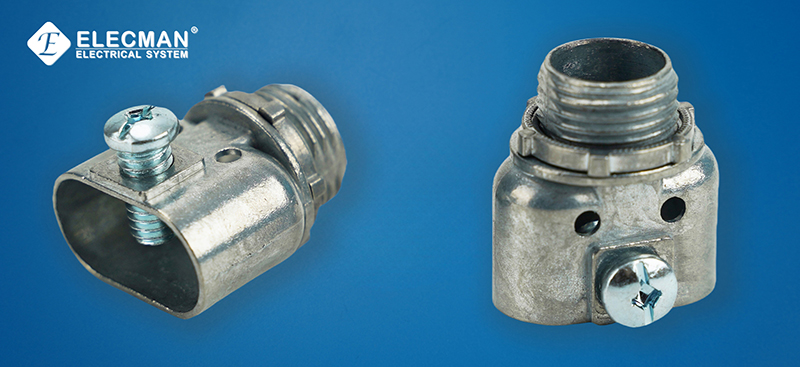

ELECMAN® Duplex Connector One Screw Set Screw Type
Duplex AC (BX) Flex-MC Connector is a dual-cable connector for armored or flexible electrical cables, used to safely and securely attach two cables to an electrical box.
MATERIAL: Zinc die cast
FINISH: Polishing
TYPE: One screw
CERTIFICATE:
UL
APPLICATION:
Duplex AC (BX) Flex-MC Connector is an electrical fitting used to join armored cable types—specifically AC (Armored Cable, often called BX), FMC (Flexible Metal Conduit, sometimes called “flex”), and MC (Metal-Clad Cable)—to an electrical box or enclosure.
FEATURES:
Material: Zinc die cast
Clamp or Squeeze Type: Secures the cables by tightening screws or a clamp.
UL Listed: Meets safety standards.
Size: Common sizes are 3/8" or 1/2", matching the cable and knockout size.
| CATALOG NUMBER | TRADE SIZE |
| DPOC038 | 3/8" |
PACKING INFORMATION:
Inner Packaging: Paper box or self sealing plastic bag
Outer Packaging: Corrugated cardboard box
