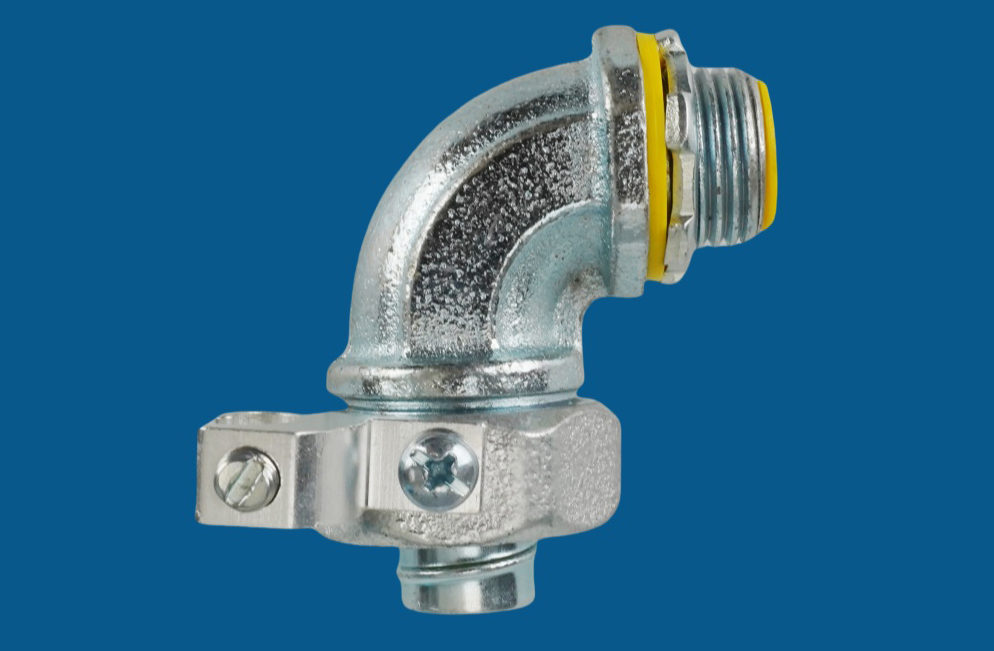

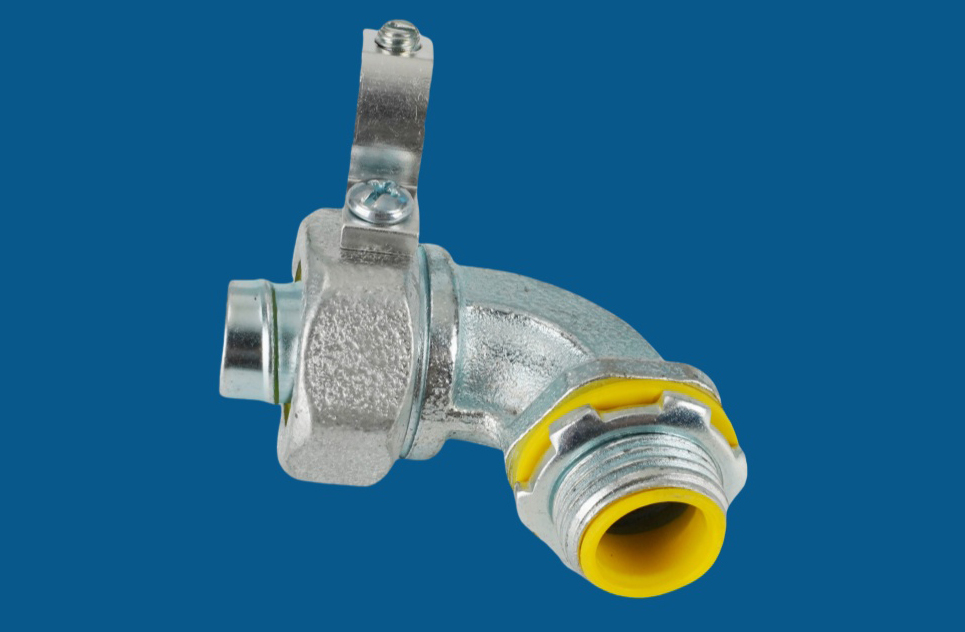

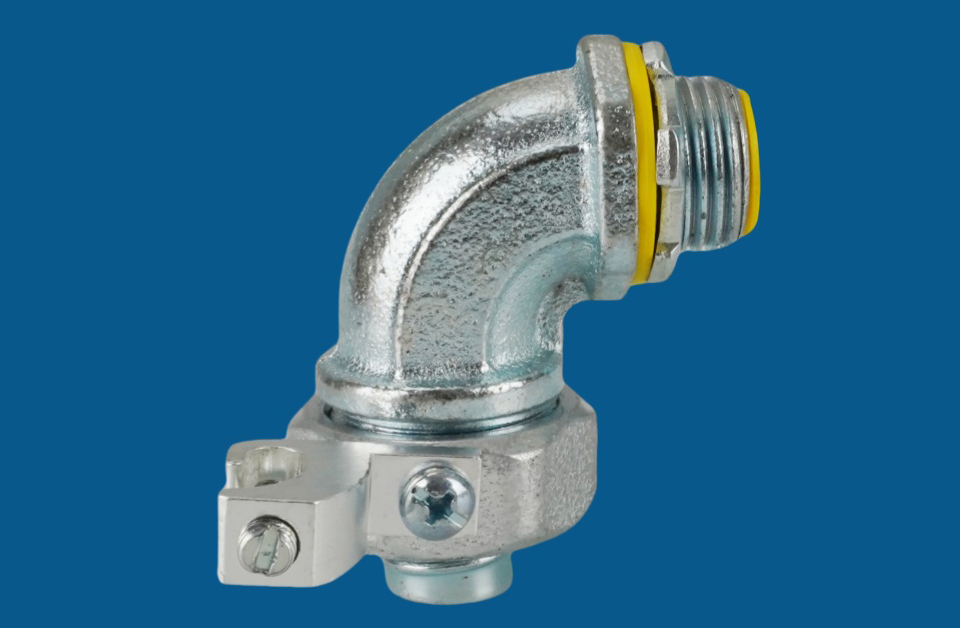

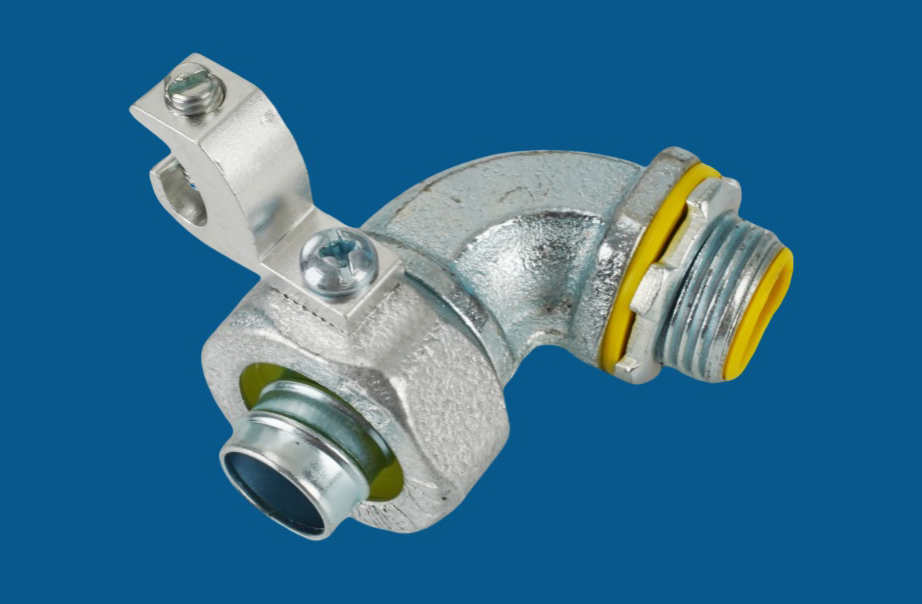

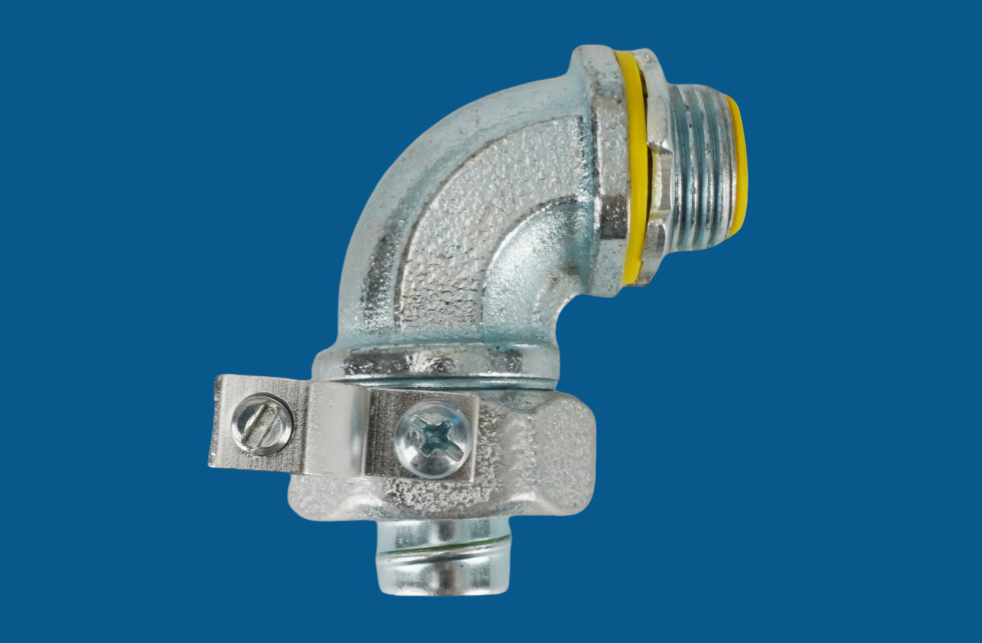

ELECMAN® Malleable Iron Liquid Tight Connector 90 Degree Type with Aluminum Lug

Malleable Iron Insulated 90° Angle Liquid Tight Connectors with Aluminum Lug are designed for use in outdoor or indoor locations on flexible metallic liquid-tight conduits and Type B flexible non-metallic liquid-tight conduits when the installation of a copper or aluminum external bonding jumper is necessary. The connector slips on and quickly grips the conduit jacket, preventing any pullouts or breakage of the seal. The sealing washer maintains a liquid-tight seal when terminating the connector in an unthreaded opening.

MATERIAL: Malleable iron

LUG MATERIAL: Aluminum

FINISH: Zinc plated

TYPE: 90 degree

CERTIFICATE:

UL Listed, File No.: E547878

FEATURES:

Material:

Made from high-quality malleable iron, providing excellent strength, durability, and resistance to mechanical stress.

90 Degree Angle Design:

Facilitates conduit runs in tight spaces or around corners, making installation easier in confined or complex layouts.

Liquid Tight Seal:

Includes a sealing washer and insulated throat to ensure a secure, liquid-tight connection that protects against moisture, oil, dust, and other contaminants.

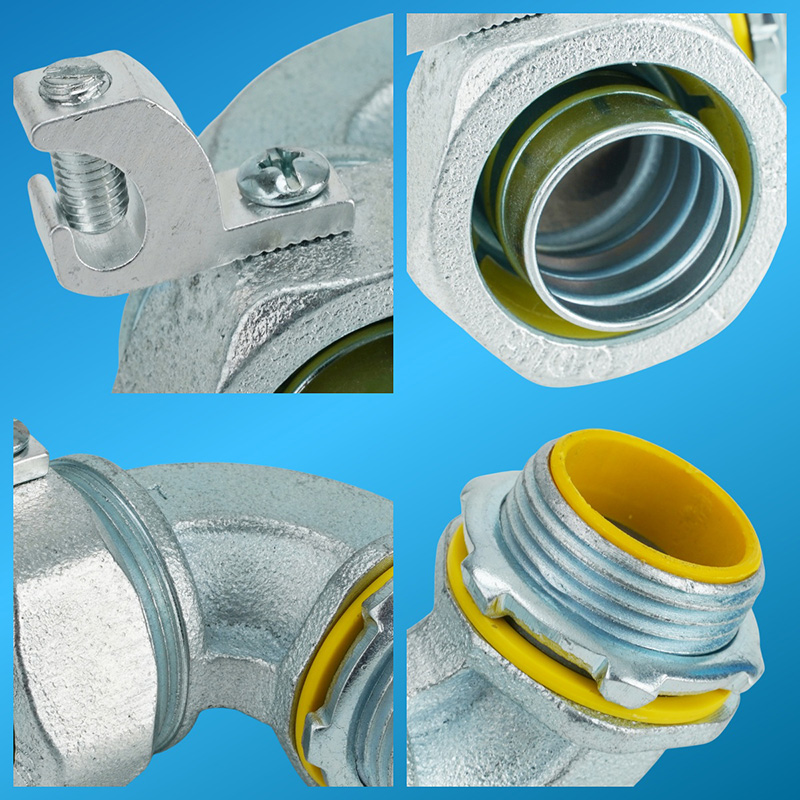

Aluminum Lug:

Equipped with an external aluminum lug for easy attachment of a copper or aluminum bonding jumper, ensuring proper grounding and bonding as required by electrical codes.

Quick and Secure Installation:

The connector slips onto the conduit and grips the jacket firmly, preventing pullouts and maintaining the integrity of the seal.

Versatile Application:

Suitable for use with flexible metallic liquid-tight conduit and Type B flexible non-metallic liquid-tight conduit in both indoor and outdoor environments.

Corrosion Resistance:

The malleable iron body is often zinc-plated or galvanized, enhancing corrosion resistance and extending service life.

Code Compliance:

Designed and manufactured to meet relevant electrical standards for safety and performance.

PACKING INFORMATION:

Inner Packaging: Paper box or self sealing plastic bag

Outer Packaging: Corrugated cardboard box
