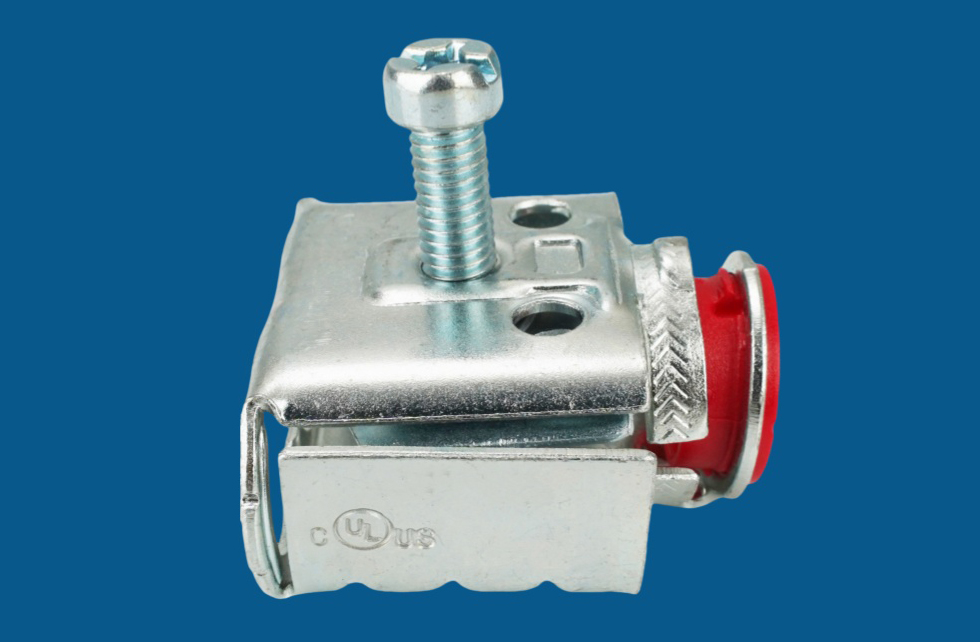

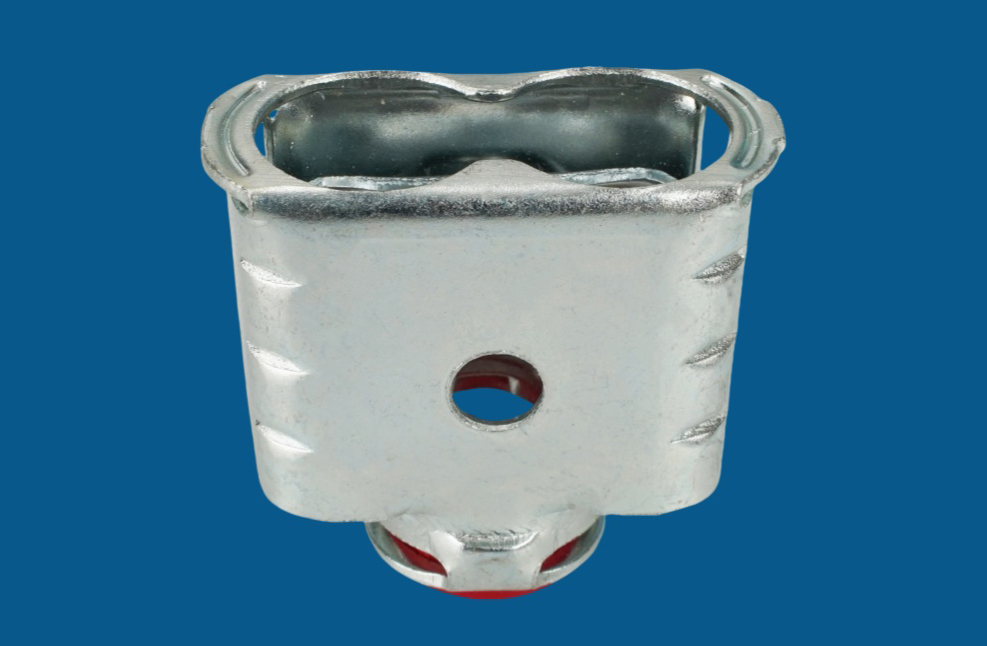

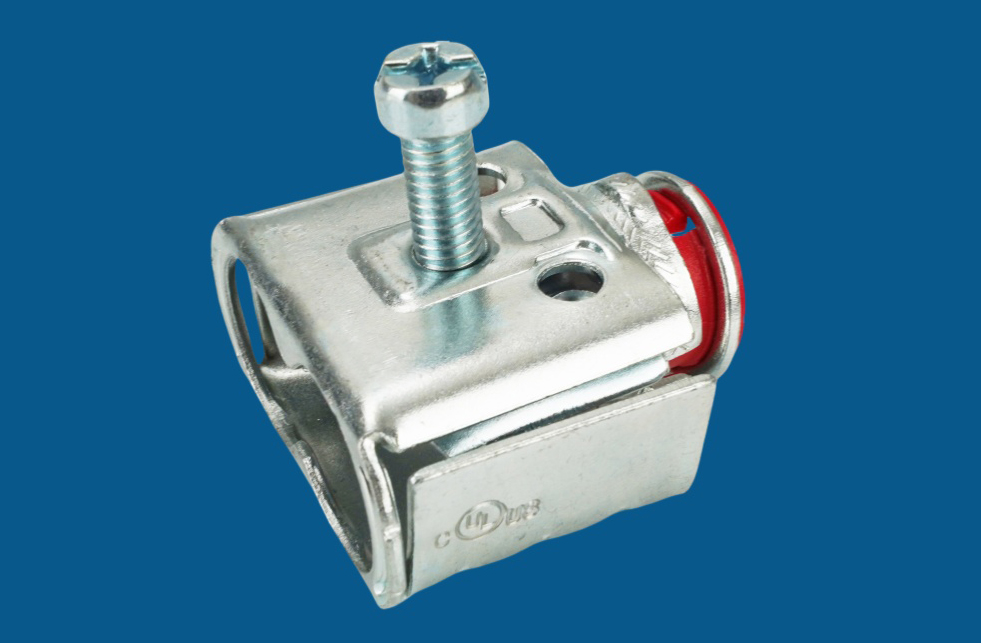

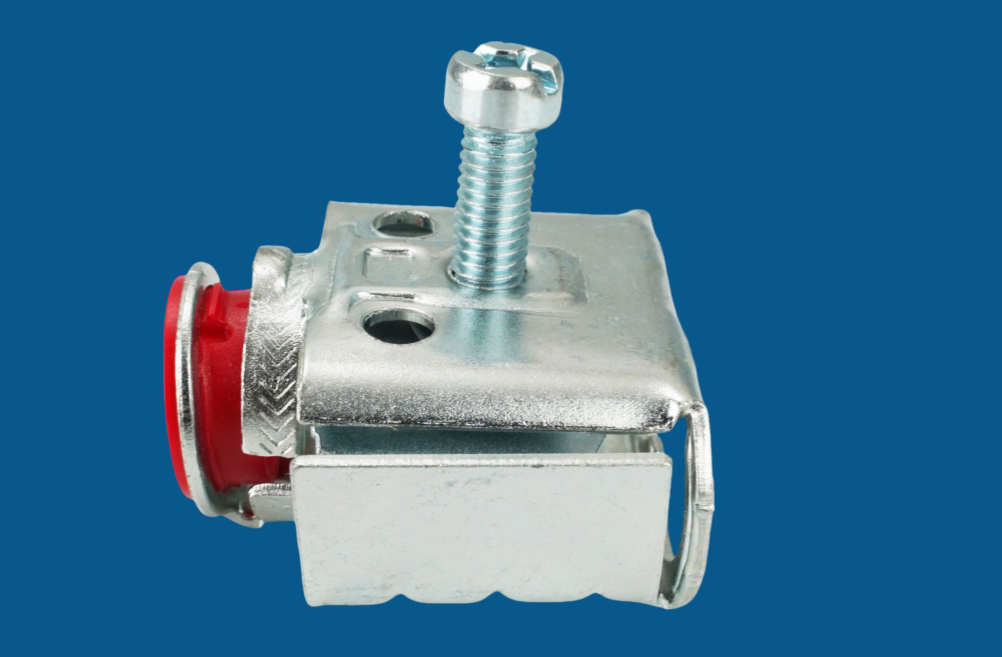

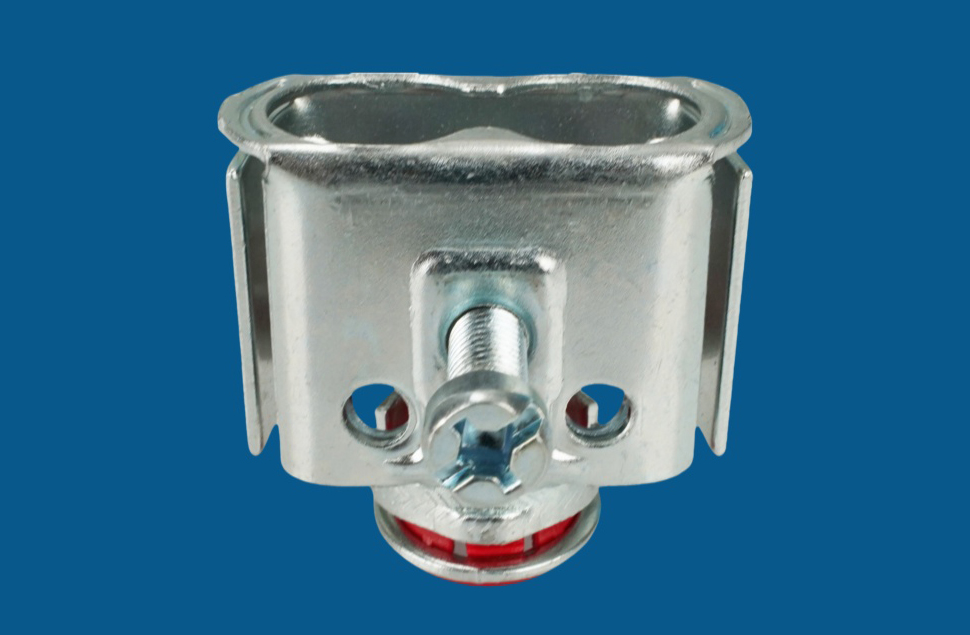

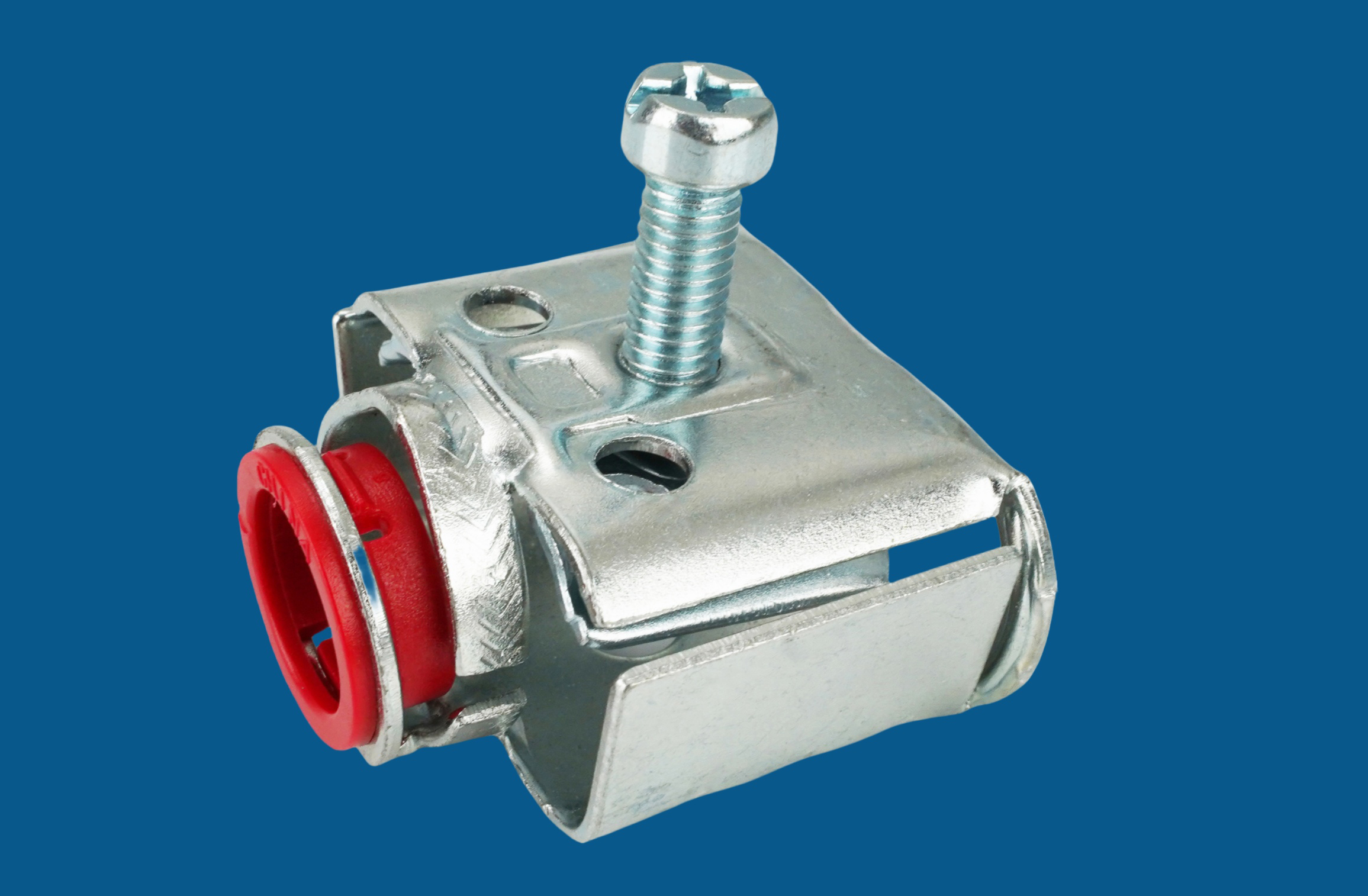

ELECMAN® Quicklock Connector Snap-In Duplex Type

MATERIAL: Steel

FINISH: Zinc plated

TYPE: Snap-in set screw

CERTIFICATE:

UL Listed, File No.: E547878

APPLICATION:

ELECMAN® Quicklock connector snap-in duplex type with insulatedthroats are used to connect exible metal conduits like metal clad cables or armored cables to electrical junction boxes or enclosures. The fast lock connectorssnap on box knockout openings and no locknuts are needed to secure them. They accept multiple cable sizes. They are also of excellent corrosion protection with zinc electroplated.

FEATURES:

·Carbon Steel

·Zinc plated

·Saddle-base connector

·Combo head set-screw

·Different color insulation are available

CABLE RANGE:

Steel AC: 14/2 (0.475") - 10/3 (0.565")

AL AC: 14/2 (0.464") - 10/3 (0.610")

Steel MCI: 14/2 (0.455") - 10/3 (0.565")

AL MCI: 14/2 (0.455") - 10/3 (0.600")

Steel HCF AC: 14/2 (0.475") - 10/3 (0.565")

AL HCF AC: 14/2 (0.464") - 10/3 (0.610")

AL MCI-A: 14/2 (0.385") - 10/3 (0.510")

HCF MCI-A: 14/2 (0.385") - 10/3 (0.510")

Steel/AL FMC/RWFMC: 3/8"

PACKING INFORMATION:

INTERNAL PACKING: Small carton box or self sealing plastic bag

EXTERNAL PACKING: Corrugated Carton
