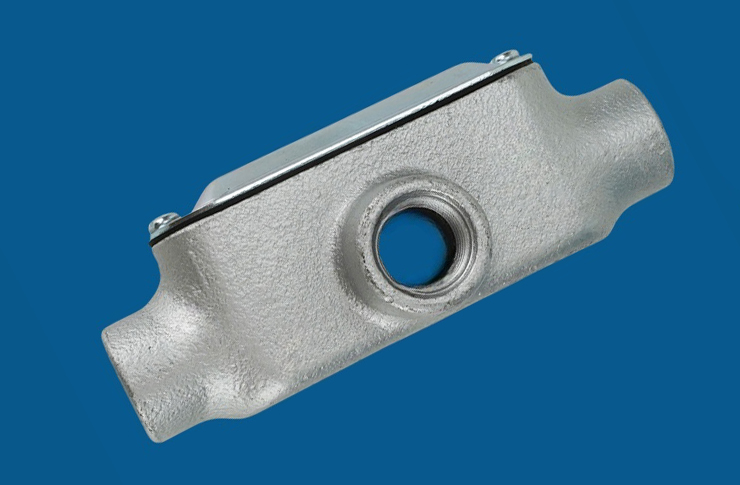

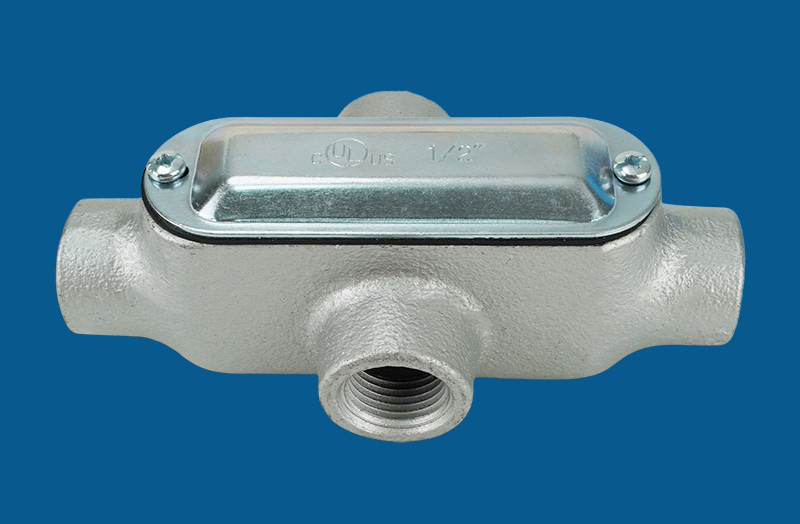

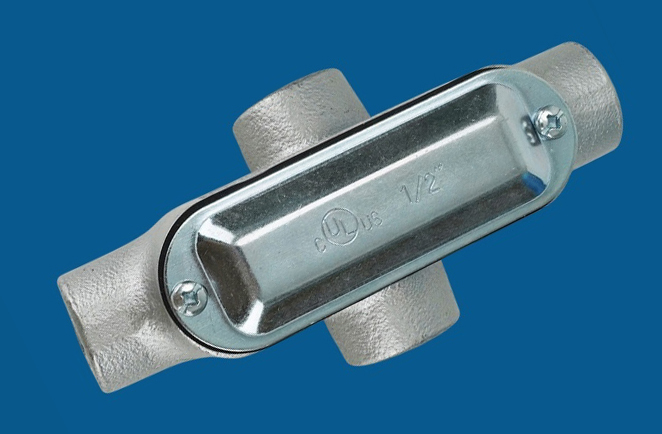

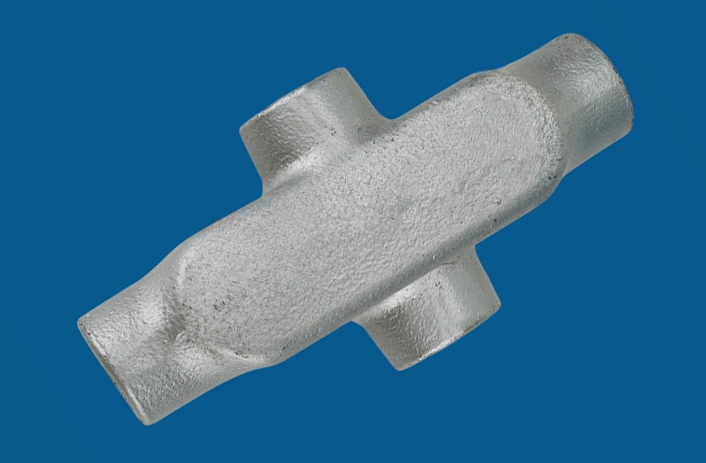

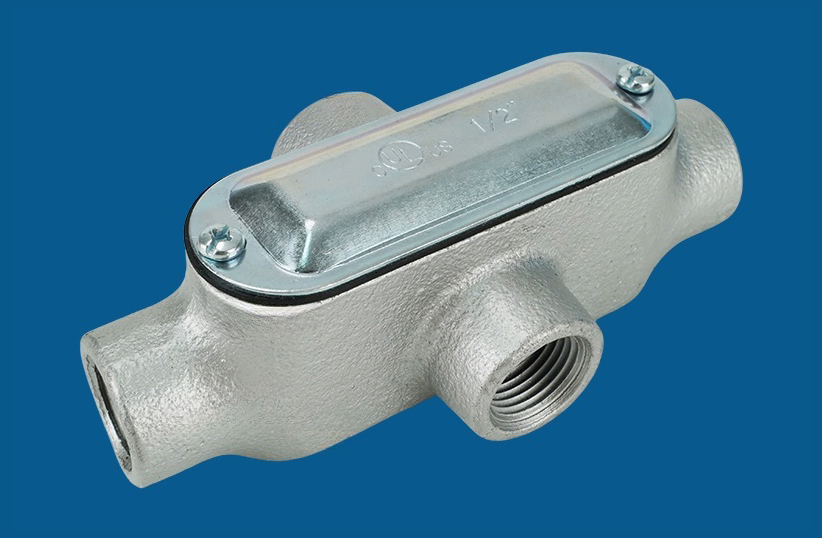

ELECMAN® Form 5 Threaded X Conduit Bodies

MATERIAL: Malleable iron

TYPE: Threaded X type

APPLICABLE THIRD PARTY STANDARDS:

• UL Standard 514A

• Fed.Spec. W-C-586D

• NEMA:FB-1

  NEMA4

APPLICATION:

Form 5 malleable iron conduit bodies are used in conduit systems to:

• Act as pull outlets for conductors being installed.

• Provide openings for making splices and taps in conductors.

• Act as mounting outlets for lighting fixtures and wiring devices.

• Connect conduit sections.

• Provide taps for branch conduit runs.

• Make 90 degree bends in conduit runs.

• Provide for access to conductors for maintenance and future system change.

FEATURES:

• Interchangeable with Appleton Form 35 conduit bodies.

• Built-in rollers on 11/4” to 4” C and LB bodies to facilitate wire pulling.

• Smooth and rounded integral bushings for protection of wire insulation

• Solid neoprene gaskets may be converted to open type by pulling out perforated center section.

• Stainless steel cover screws.

• Domed sheet steel covers provide additional cubic capacity.

• Integral gasket cover provides NEMA 4 rating.

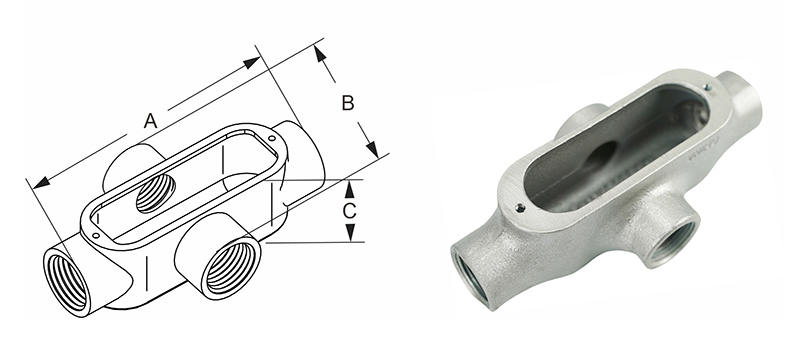

DIMENSIONS:

PACKING INFORMATION:

External packing: Corrugated carton

Other names: Condulet form 5, form 5 conduit outlet bodies, form 5 conduit body
