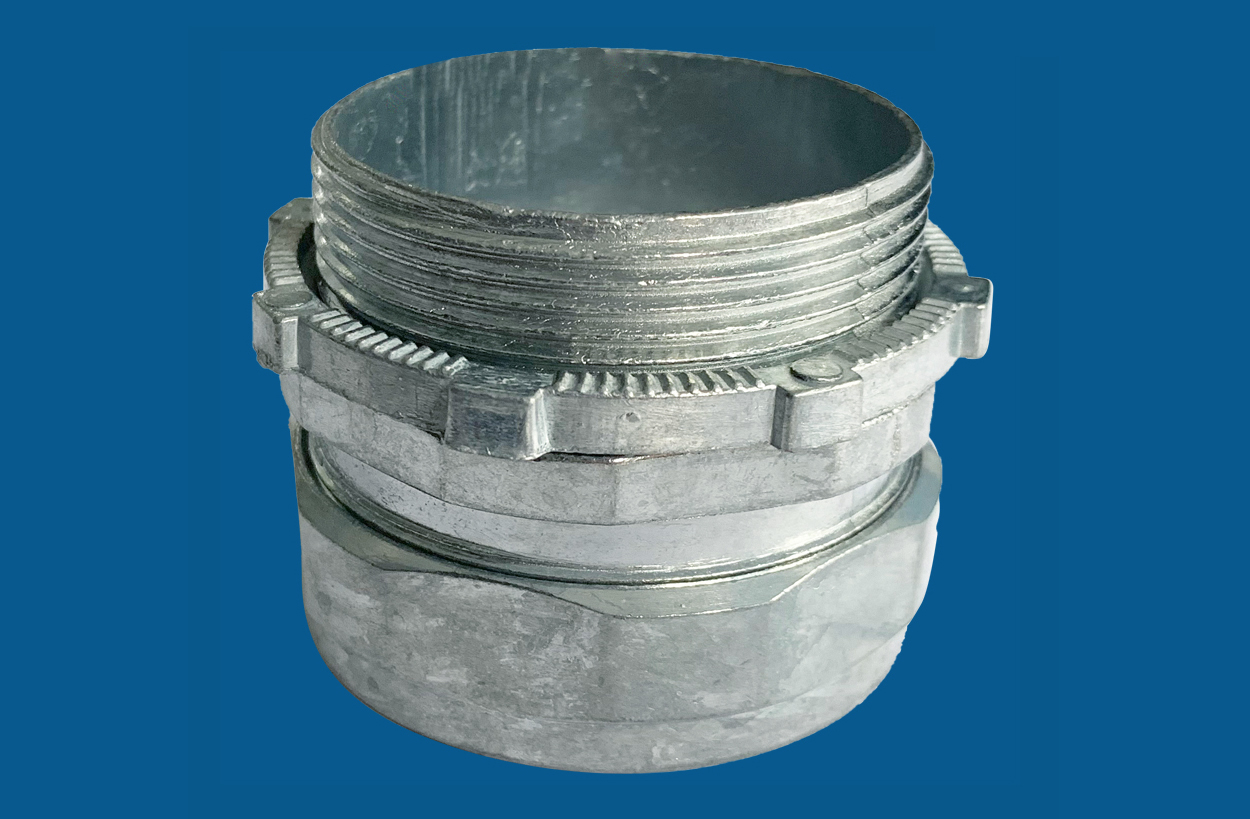

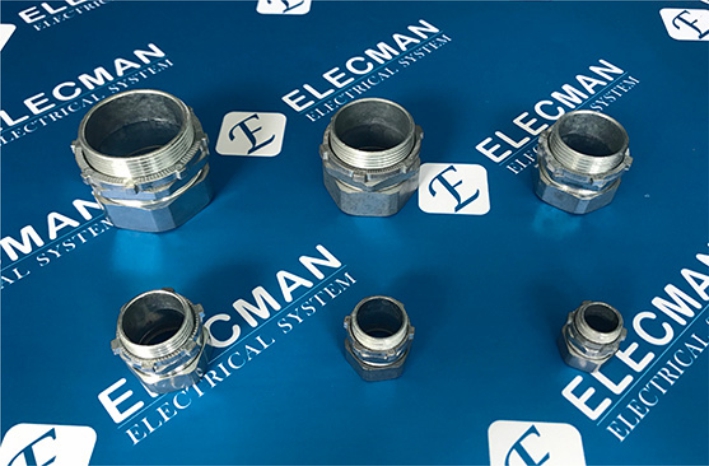

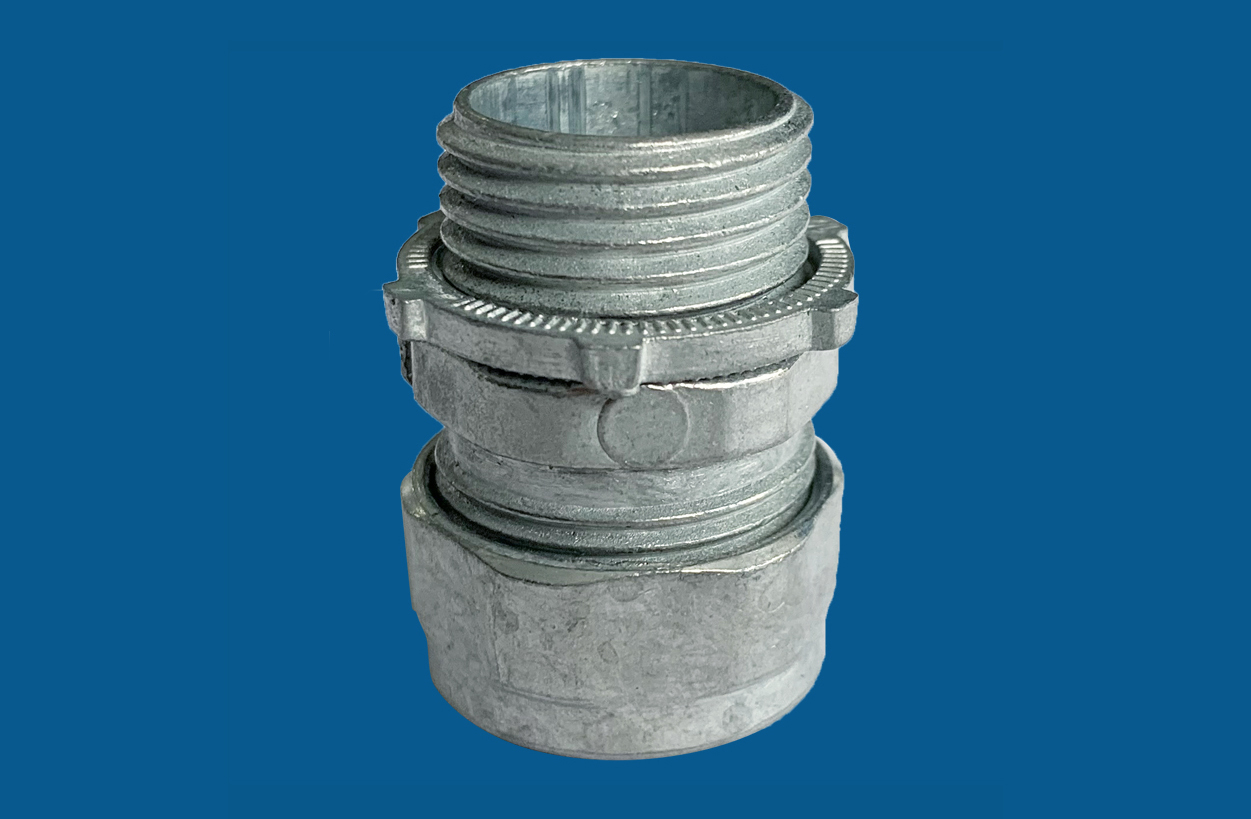

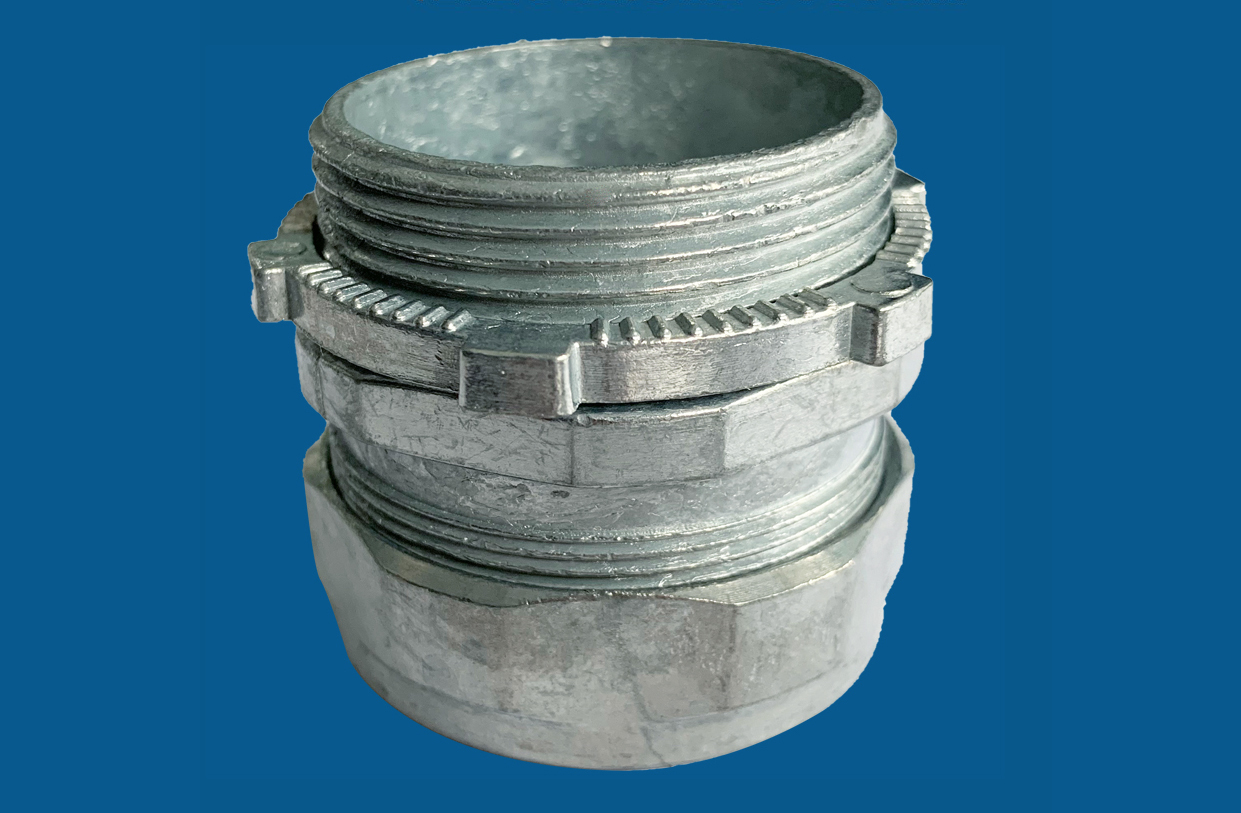

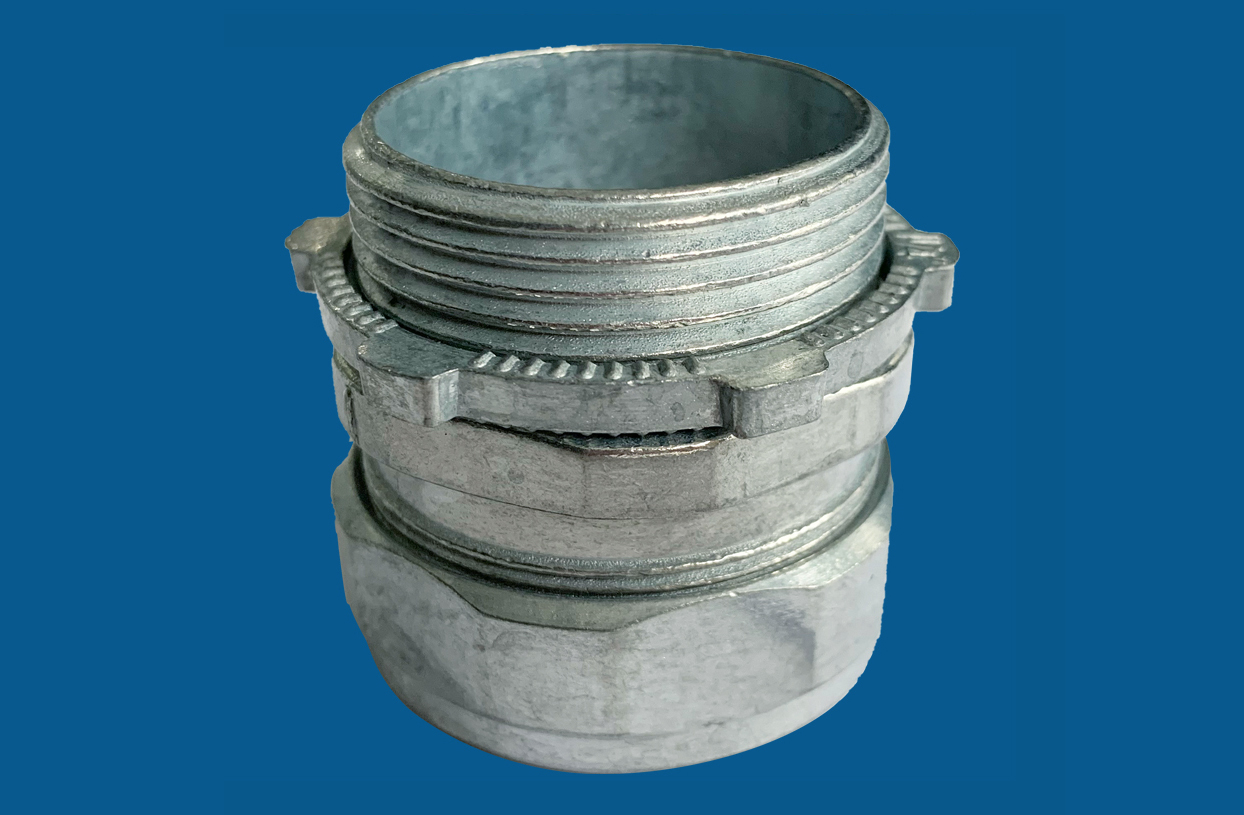

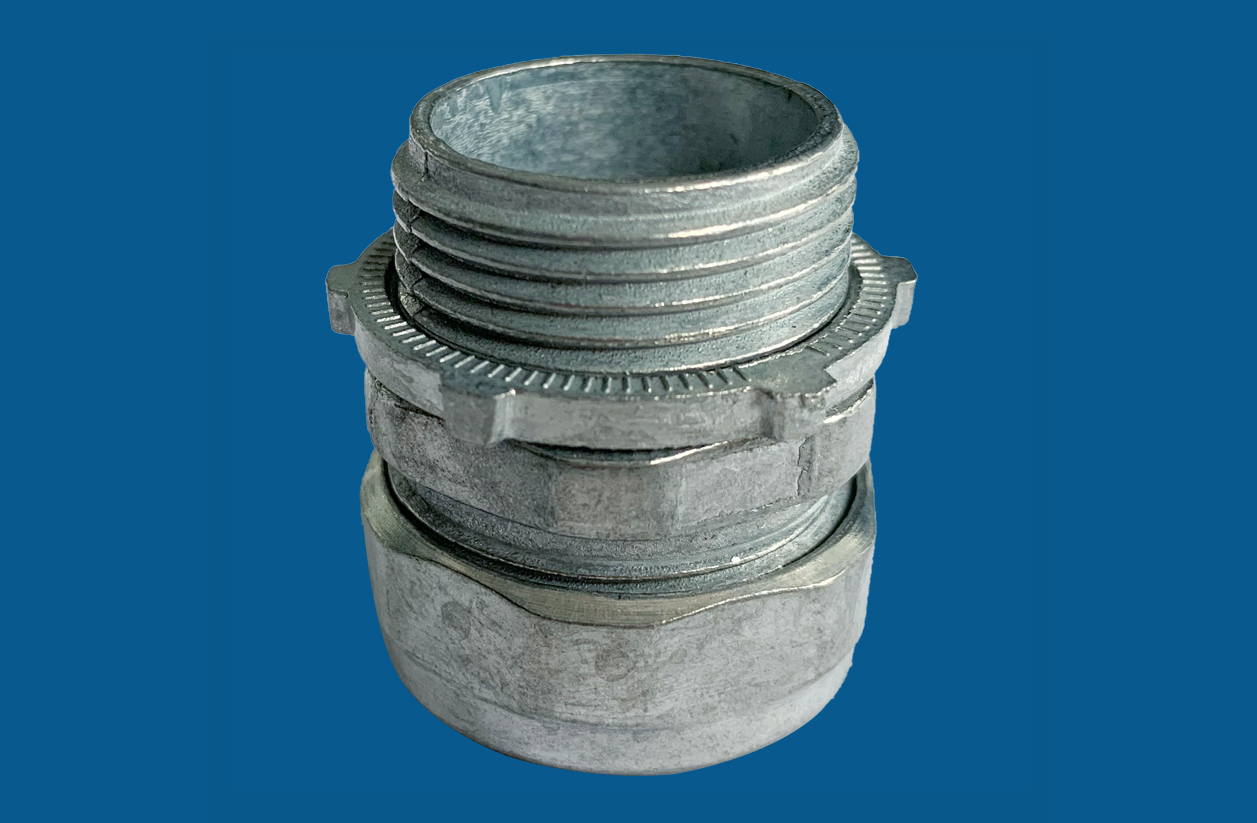

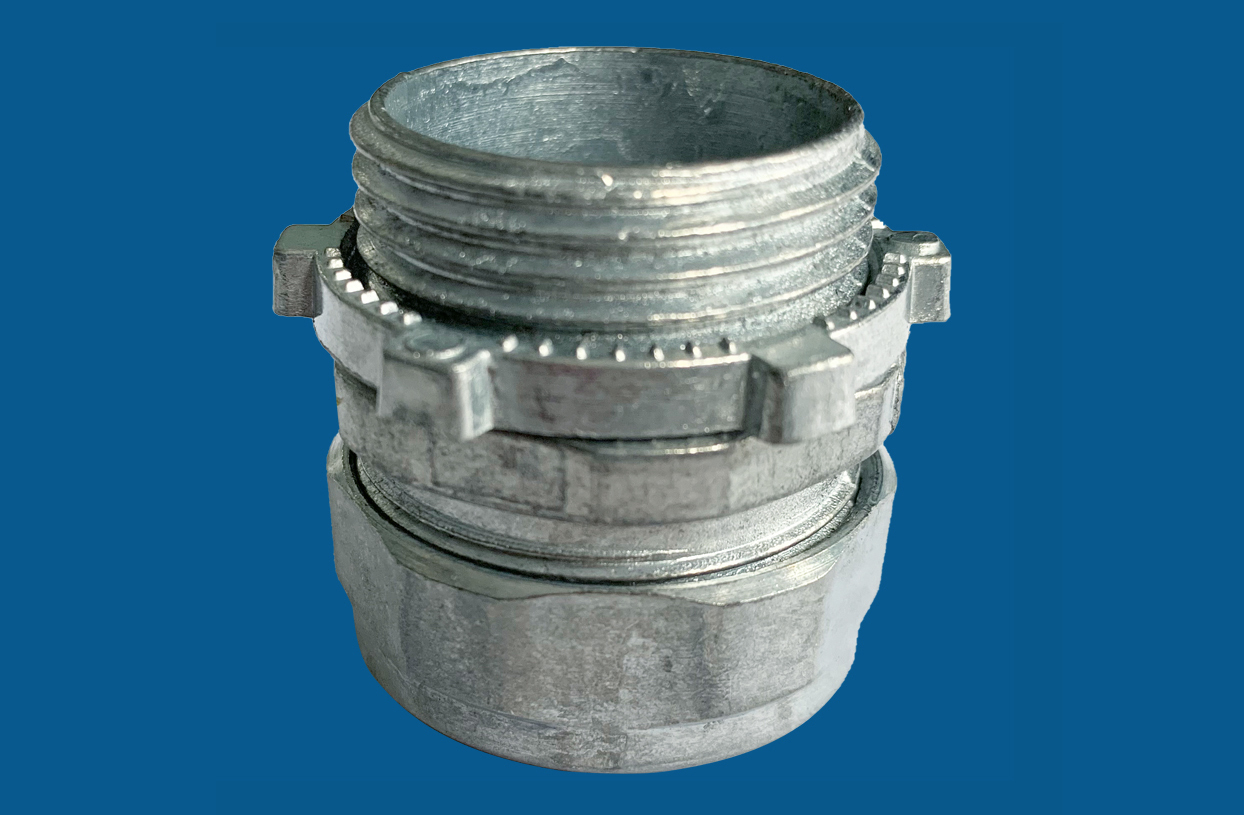

Zinc EMT Connector Compression Type
Material : Zinc die cast
Surface Finish : Polishing
Type : Compression type

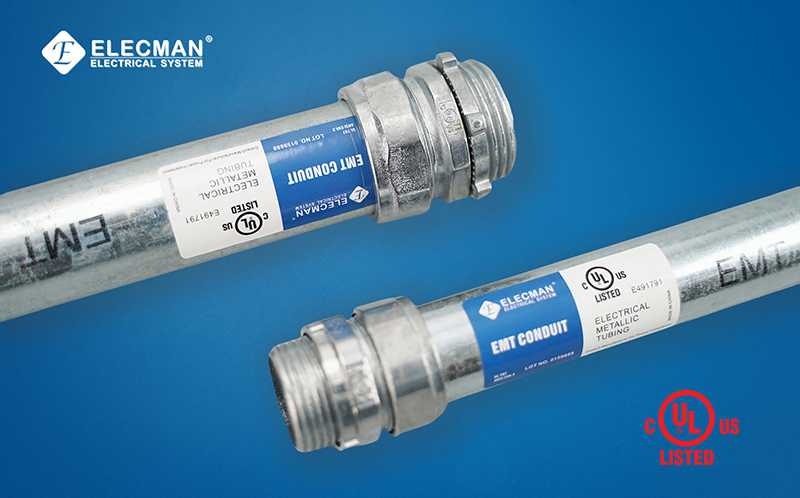

ELECMAN® Zinc EMT Connector Compression Type
PRODUCT: EMT connector
MATERIAL: Zinc die cast
TYPE: Compression type
CERTIFICATION AND COMPLIANCE:
UL listed
File No.: E513114
APPLICATION:
For use to economically bond EMT conduit to a box
FEATURES:
·Rugged metallic construction provides mechanical protection for the receway
·Provide concrete-tight connections when taped
·Male hub treads NPS
·Assembled with a die cast locknut
·Insulated type are available.
| CATALOG NUMBER | TRADE SIZE | INNER PACK | MASTER PACK | WEIGHT/C | VOLUME/C |
| CCN050 | 1/2" | 100 | 500 | 14.50 | 0.015 |
| CCN075 | 3/4" | 100 | 500 | 22.50 | 0.025 |
| CCN100 | 1" | 50 | 250 | 15.50 | 0.025 |
| CCN125 | 1-1/4" | 25 | 125 | 14.90 | 0.025 |
| CCN150 | 1-1/2" | 20 | 100 | 15.00 | 0.025 |
| CCN200 | 2" | 10 | 50 | 11.40 | 0.025 |
PACKING INFORMATION：
INTERNAL PACKING: Small carton box or self sealing plastic bag
EXTERNAL PACKING: Corrugated Carton
