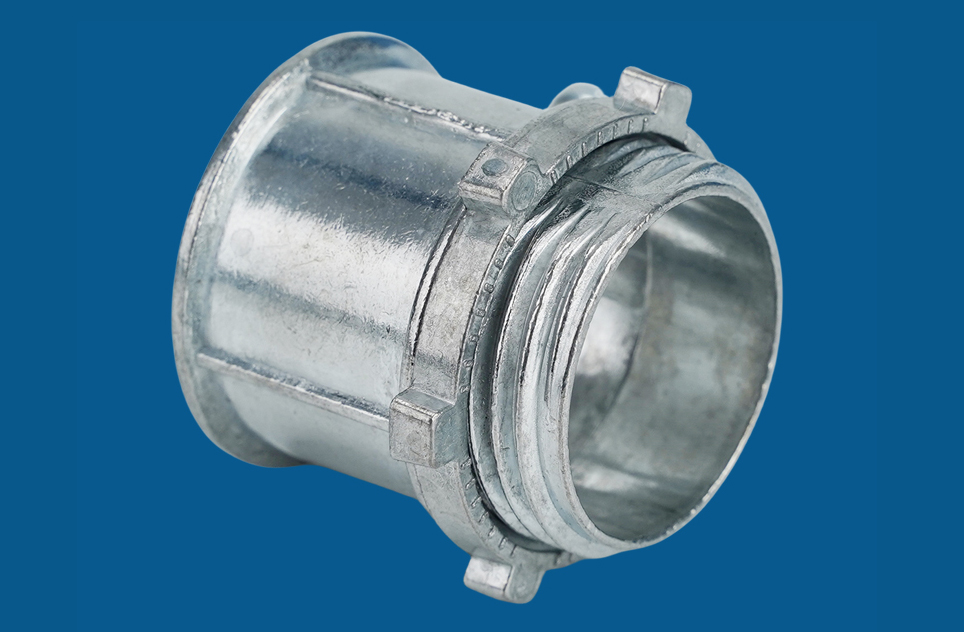

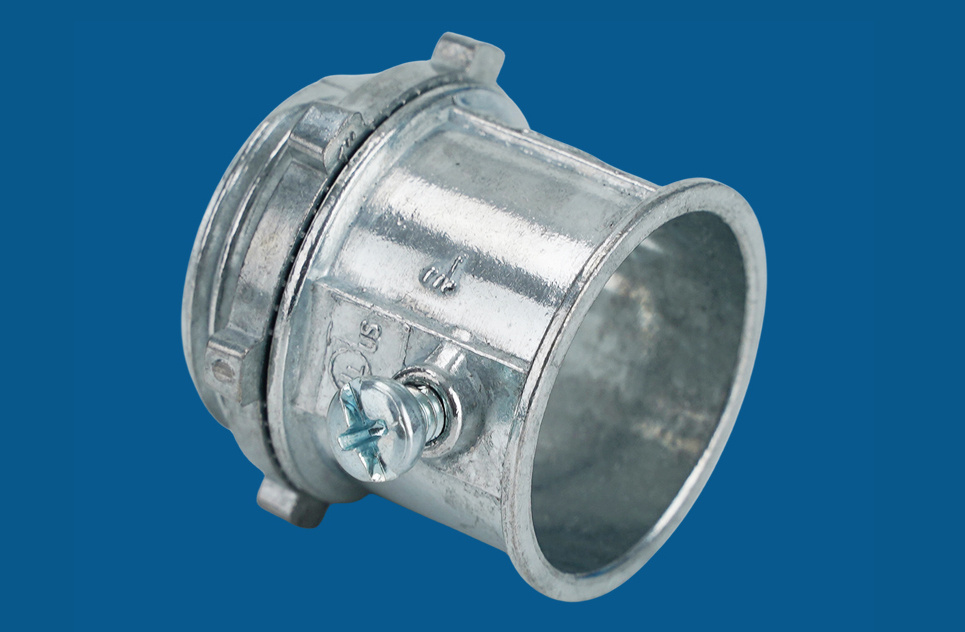

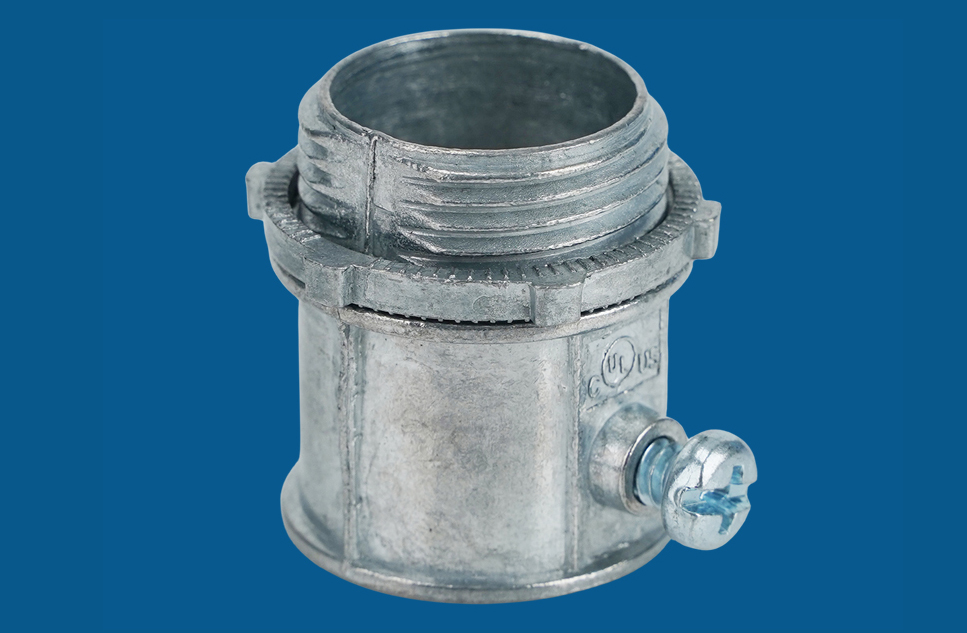

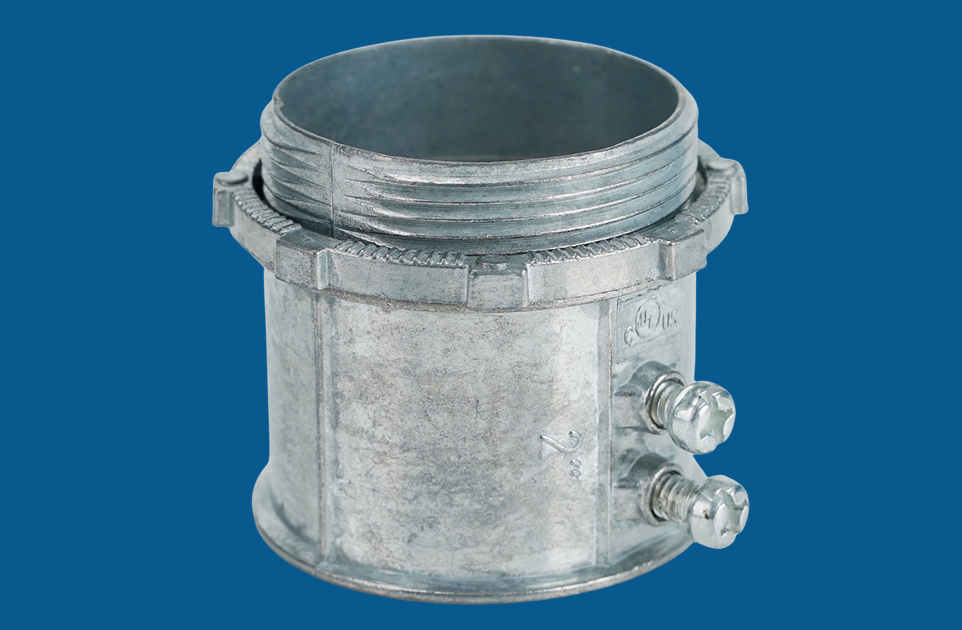

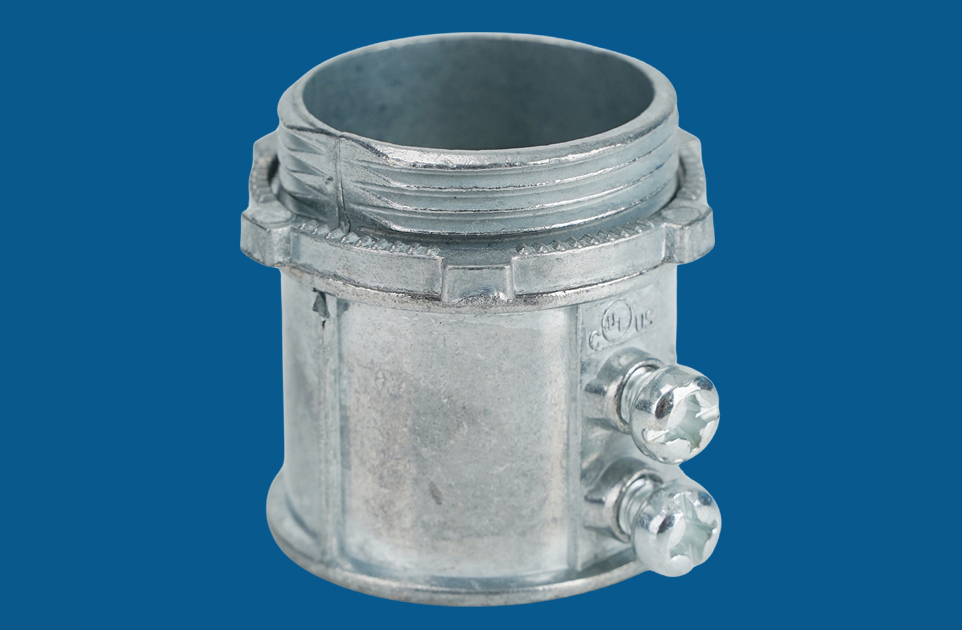

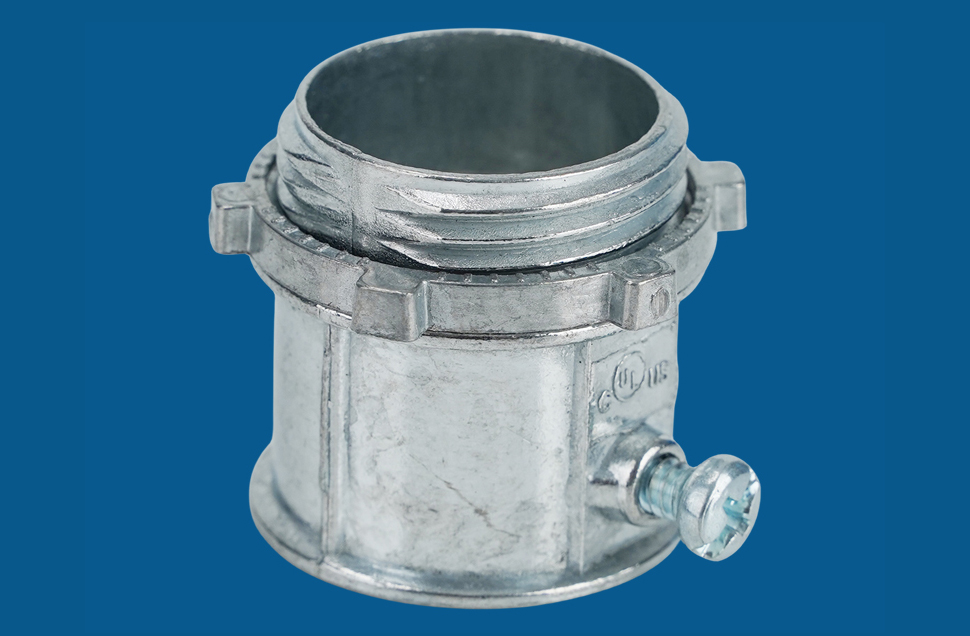

Zinc EMT Connector Set Screw Type
Material : Zinc die cast
Surface Finish : Polishing
Type : Set screw type

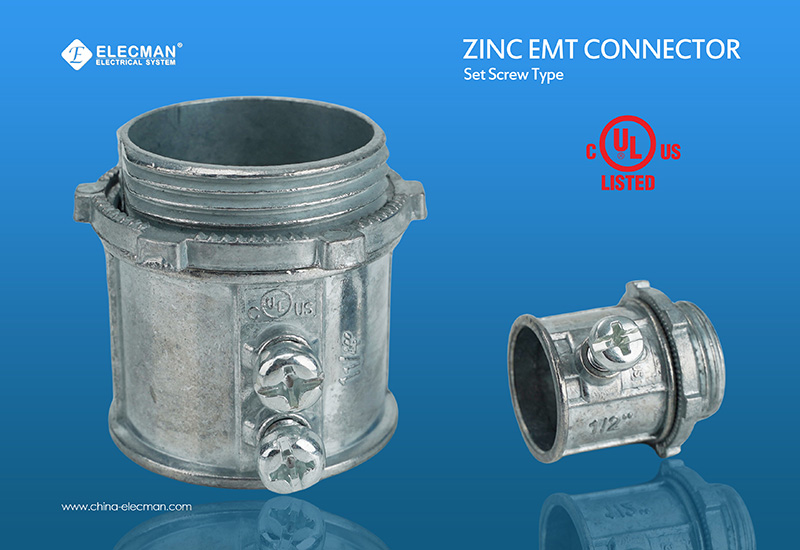

ELECMAN® Zinc EMT Connector Set Screw Type
PRODUCT: EMT connector
MATERIAL: Zinc die cast
TYPE: Set screw type
CERTIFICATION AND COMPLIANCE:
UL listed
File No.: E513114
APPLICATION:
For use in dry locations to economically bond EMT conduit to a box or enclosure
FEATURES:
·Rugged metallic construction provides mechanical protection for the receway
·Provide concrete-tight connections when taped
·Male hub treads NPS
·Assembled with a die cast locknut
·Insulated type are available.
| CAT# | Trade Size |
| CON050 | 1/2" |
| CON075 | 3/4" |
| CON100 | 1" |
| CON125 | 1-1/4" |
| CON150 | 1-1/2" |
| CON200 | 2" |
| CON250 | 2-1/2" |
| CON300 | 3" |
| CON350 | 3-1/2" |
| CON400 | 4" |
PACKING INFORMATION：
INTERNAL PACKING: Small carton box or self sealing plastic bag
EXTERNAL PACKING: Corrugated Carton
