Liquid Tight Flexible Steel Conduit
Material : PVC & Steel
Surface Finish : PVC coated
Type : JSB

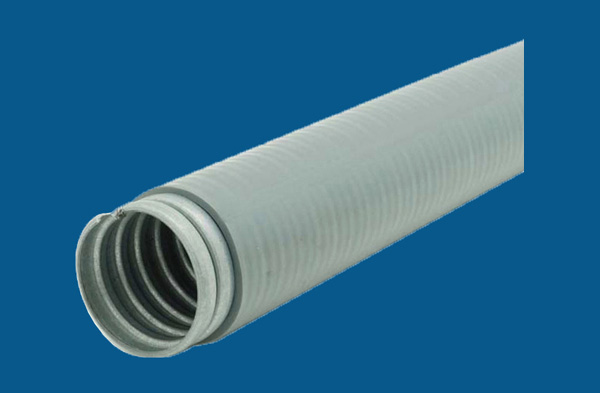

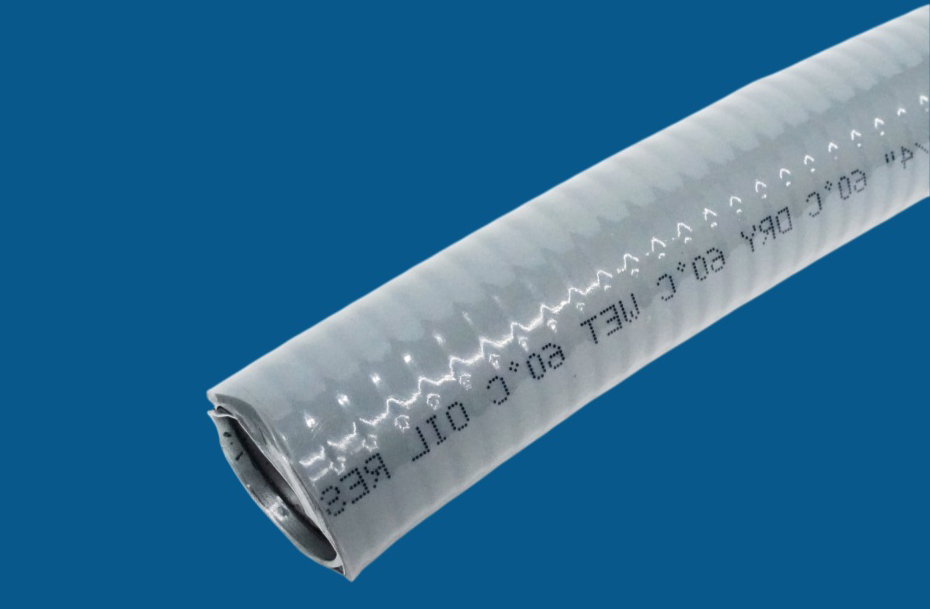

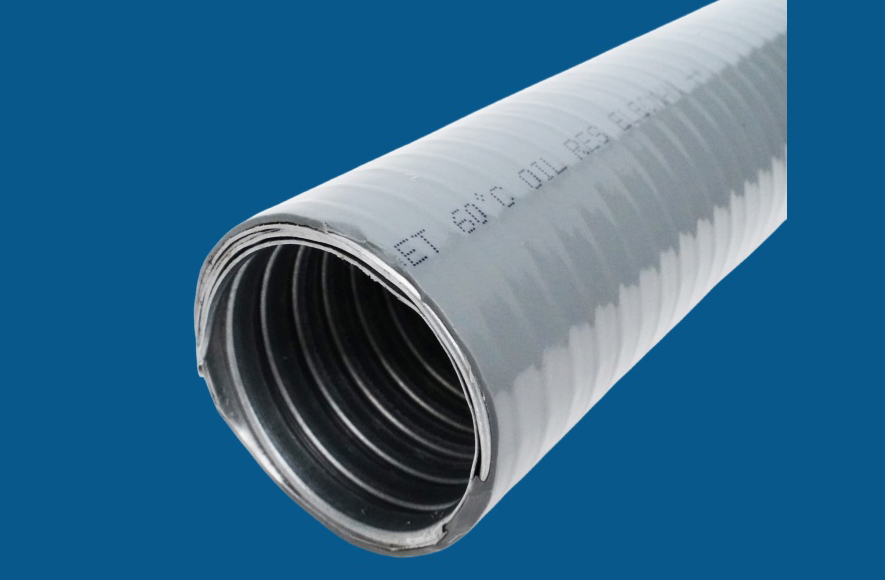

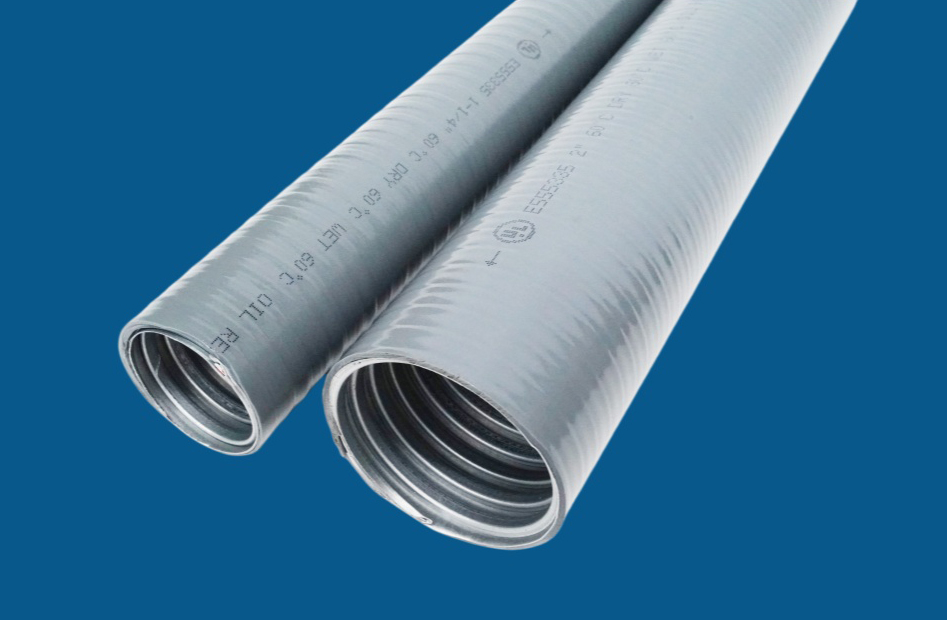

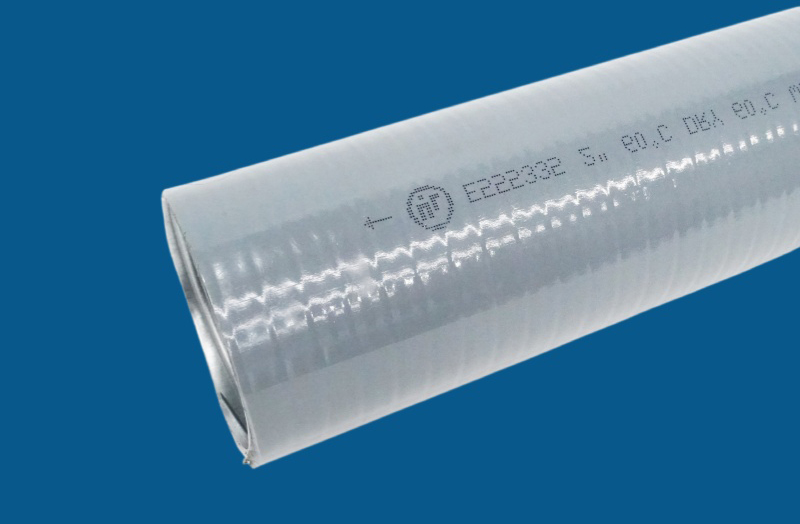

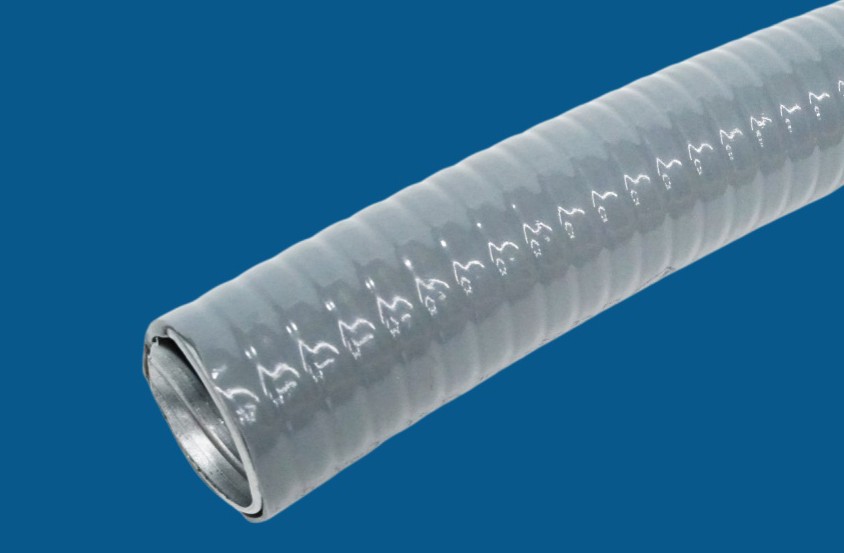

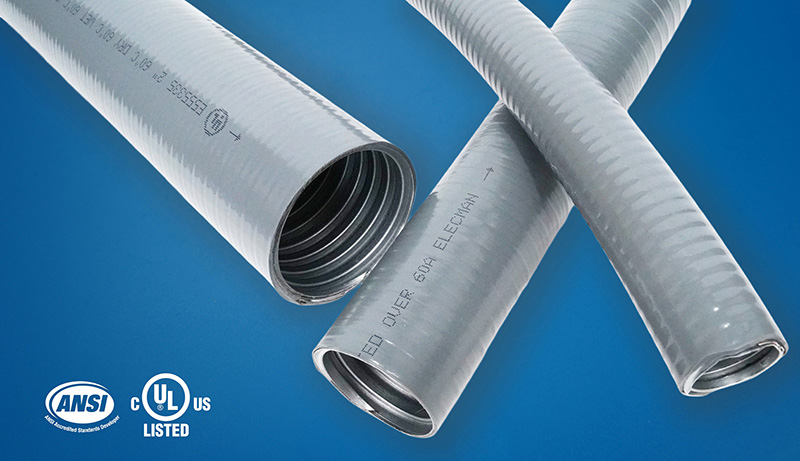

ELECMAN® Liquid Tight Flexible Steel Conduit
PRODUCT: Liquid tight flexible steel conduit
MATERIAL: PVC & Steel

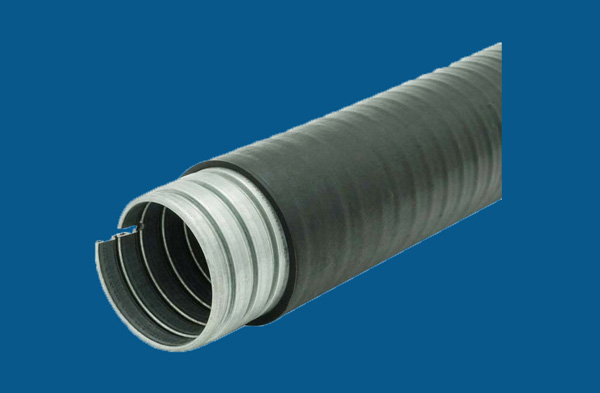

COLOR: Black & grey

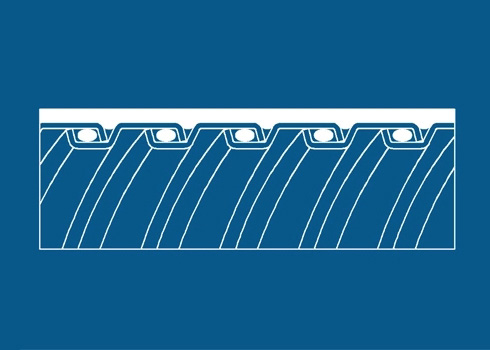

STRUCTURE: Square lock or interlock
TEMPERATURE RANGE: -10℃ ~80 ℃
APPLICATION:
Machine tools.
Outdoor installations.
Used as mechanical protection for insulated electrical cables and wires that are functional in normal atmospheric temperature.
Under floor applications for computer/floor boxes.
Used for connecting machines to controls
Elevators, Metro Stations, CCTV Camera etc
PRODUCTS FEATURES:
High mechanical strength.
IP rating: IP64 & IP65
Inherent low fire hazard product.
National standard thickness of production, having super soft and excellent bending performance.
Internal smooth structure is very easy for the entry of wire and cable.
(inner layer) adopting galvanized steel band with special insulation treatment
(outer layer) adopting PVC raw material (anti-UV, anti-aging)
CERTIFICATION:

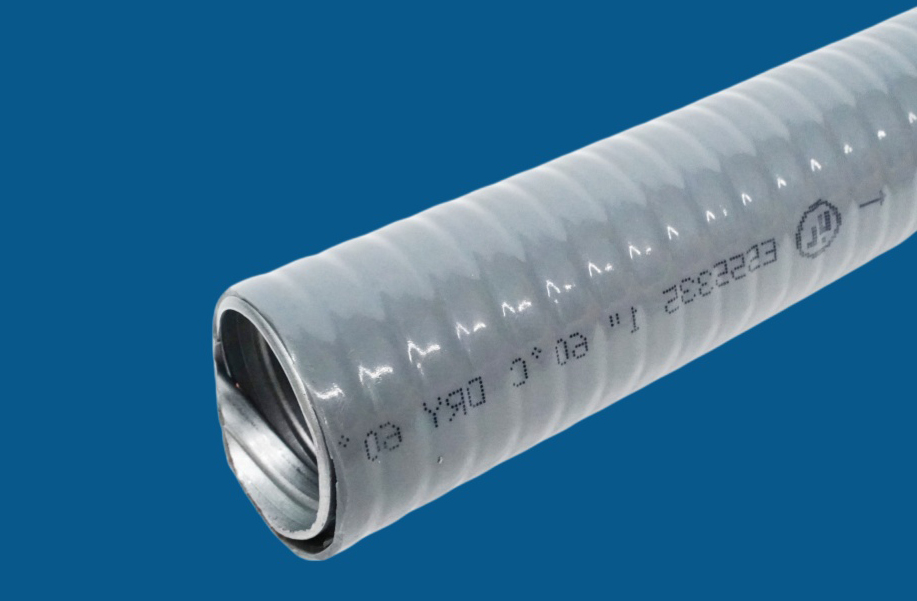

UL Listed
File No.: E555335
| CAT # | Trade Size | Inside Diameter | Outside Diameter | Bending Radius | Length | ||
| MIN(mm) | MAX(mm) | MIN(mm) | MAX(mm) | m/Roll | |||
| JSB-025 | 1/4" | 6.20 | 6.70 | 11.40 | 11.90 | 35 | 100 |
| JSB-038 | 3/8" | 12.30 | 12.80 | 17.50 | 18.00 | 60 | 100 |
| JSB-050 | 1/2" | 15.80 | 16.30 | 20.80 | 21.30 | 85 | 50 |
| JSB-075 | 3/4" | 20.70 | 21.20 | 26.30 | 26.70 | 100 | 50 |
| JSB-100 | 1" | 26.20 | 26.80 | 32.70 | 33.40 | 150 | 50 |
| JSB-125 | 1-1/4" | 34.80 | 35.40 | 41.40 | 42.20 | 180 | 25 |
| JSB-150 | 1-1/2" | 40.10 | 40.60 | 47.40 | 48.30 | 220 | 25 |
| JSB-200 | 2" | 51.30 | 51.90 | 59.40 | 60.30 | 250 | 25 |
| JSB-250 | 2-1/2" | 63.00 | 63.60 | 72.10 | 73.00 | 300 | 10 |
| JSB-300 | 3" | 78.00 | 78.70 | 87.90 | 88.90 | 450 | 10 |
| JSB-400 | 4" | 101.60 | 102.60 | 113.20 | 114.30 | 600 | 10 |
| Notes:Length of roll can be made according to customers' requirements. | |||||||
| Black Color or Gray Color is available. | |||||||

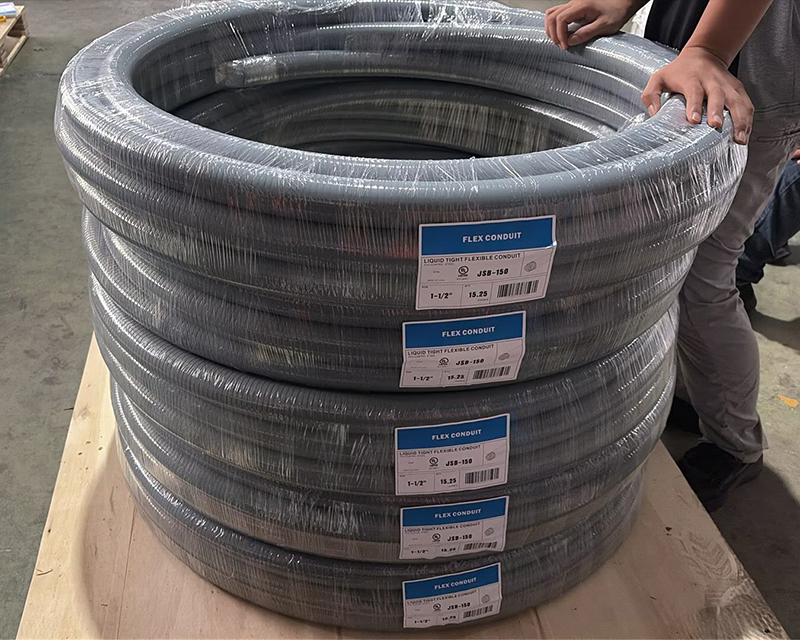

PACKING INFORMATION :
For internal packing, flexible conduits are packed in rolls,
For external packing, use good quality corrugated carton.
ELECMAN® Liquid-tight Flexible Metal Conduit Technical Data Sheet.pdf
E555335 Liquid Tight Flexible Conduit.pdf
